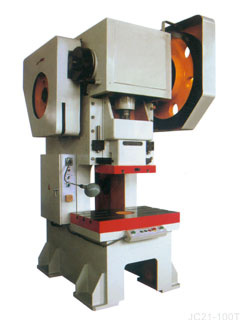

Punching Machine (JC21)

Name: Punching Machine (JC21)
Brand: china-castingforging.com
SKU: 666192122
Availability: InStock
Rating: 4.7 (72 reviews)

Price:	Negotiable
Min Order:	1

Contact Supplier

Beijing Huaduan Machine Tool Manufacturing Co., Ltd.

Showroom Product Company Profile

Prod Model:	JC21
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Machine Tool&Accessories

Product Description

Our company insists on "quality first, customer supreme" and sincerely welcomes customers from all over the world to negotiate and cooperate.

TECHNICAL PARAMETERS	JC21-63	JC21-80	JC21-100	JC21-125	JC21--200	JC21--300
NOMINAL PRESSURE (KN)	630	800	1000	1250	2000	3000
NOMINAL PRESSURE STROKE (mm)	4	5	5	6	6	5
RAM STROKE (mm)	80	100	100	120	160	160
IMES OF STROKE (times/min)	50	50	40	38	36	35
MAX DIE INSTALLATION HEIGHT (mm)	250	300	300	320	390	450
REGULATION OF DIE INSTALLATION HEIGHT (mm)	50	60	80	100	110	120
CENTEROF RAMTO MACHINE BODY (mm)	250	260	310	350	400	420
WORKTABLE SIZE (front-rear×left-right)mm	440×670	470×750	570×860	650×1000	740×1300	800×1400
WORKTABLE HOLE SIZE (mm)	Φ180	Φ180	Φ180	Φ200	Φ180	Φ220
WORKTABLE THICKNESS (mm)	70	80	90	110	160	160
RAM BOTTOM SURFACE SIZE (front-rear×left-right)mm	240×280	260×300	360×450	420×520	580×760	600×780
DIE HANDLE HOLE SIZE (diameter×depth)mm	Φ50×70	Φ60×80	Φ60×80	Φ60×80	Φ65×90	Φ70×100
COLUMN DISTANCE (mm)	320	360	460	460	670	580
MOTOR (model /power)KW	Y132S-4/5.5	Y132S-4/5.5	Y132M-4/7.5	Y160L-6/11	Y200L-6/18.5	Y225M-6/30
OUTLINE DIMENSIONS (front-rear×left-right×height)mm	1440×1100× 2430	1756×1265× 2450	1820×1490× 2850	1905×1640× 3400	2380×1900× 3890	2630×2100× 3900
WHOLE MACHINE WEIGHT (Kg)	4150	5400	6420	9500	17600	21000

Beijing Huaduan Machine Tool Manufacturing Co., Ltd. is located in the east of No. 103 Jing-Jin Road, Sanhe City, Hebei Province. Our geographical position is superior and transportation is convenient.

Our company is a professional manufacturer of CNC bending machines, CNC cutting machines, and CNC punching, polishing-edge machines, punch machine hydraulic press machine and so on. Our company covers an area of 18, 000 square meters and owns the assets of 60 million Yuan. We have 260 existing staff members and 35 engineering and technical personnel.

In recent years, Beijing Huaduan Machine Tool Manufacturing Co., Ltd., with strong technical force and rich experience, constantly improves processing and innovation in the emerging tool industry.

Our company has completely passed ISO9001: 2000 quality management system certification. Our products sell well throughout the country and we have self-supporting authority. Our partial products have been exported to Southeast Asia, South America, Africa, Eastern Europe, and other countries and regions, and are deeply trusted by domestic and foreign users.

Our company insists on "quality first, customer supreme" and sincerely welcomes customers from all over the world to negotiate and cooperate.
