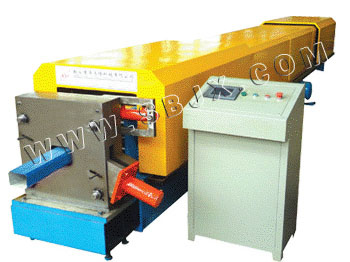

Down Pipe Roll Forming Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram |
| Prod Model: |
YX-134 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue and Yellow |
| Forging Forming Method: |
Roll Forming |
Product Description
Down pipe forming machine mainly consists of decoiler, roll forming system, cutting equipment, protective guard, hydraulic system, control system, and product supporter. Curving pipe forming machine is the complementary equipment for down pipe forming machine. It can make curve for down pipe to meet the requirement of practical engineering projects.
Features
1. High efficiency: Capable of producing down pipes with any length.
2. Good appearance: The color of down pipe can be in accordance with the house
3. Easy installation and long lifetime.
Details of each composition
A: Roll forming main machine
1: Coil width: Depend on profile
2: Working speed: 8m-10m/min (not contain cutting)
3: Roll station: 20stations
4: Material of roller: 45# forge steel, polished and coated with chrome
5: Material of main shaft: 45# forge steel diameter roller: 56mm
6: Main power: 3kw
7: Forming thickness: 0.5mm color steel
8: Transmission: By Chains
9: Size of machine: About 8500 x 1000 x 1200 (L x W x H)
10: Weight: About 4500Kgs
11: Color: Blue and yellow (also can change depend on customer request)
10: Cutting:
(1)Flat-sheet cutting: It is used when changing the coil of raw material; It can cut the coil rapidly and time-saving.
(2)Cutting after forming: Cut the sheet after roll forming to required length
(3)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(4)Material of blade: CR12with heat treatment
(5)Length measuring: Automatic length measuring
(6)Tolerance of length: +/- 1.5mm
B. Uncoiler
Dimensions: 1700mm*1000mm*800mm
Width of feeding: 500mm
Capability: 3 Ton
Bound of expand &fight: 420mm-510mm
Mode of expand &fight: Inner expand &fight by manual
Way of feeding: Manual
C: Control panel Panasonic
(1)Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase (this is can depend on customer request)
(2)Automatic length measurement:
(3)Automatic quantity measurement
(4)Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
(5)Length inaccuracy can be amended easily.
(6)Control panel: Button-type switch and touch screen
(7)Unit of length: Millimeter (switched on the control panel)
D: Hydraulic station
1: Hydraulic station power: 7.5kw
2: Hydraulic pressure: 12Mpa
E: Down pipe elbow machine:
1: Control system: Strong electrical current
2: Main motor power: 2.2kw
3: Max bend angle: 900
4: Function: Bend and fasten at the same time
5: Dimension of the machine: 1300 mm× 650 mm× 1500 mm
6: Speed of bend: 20-25m/ min
F: Manual out table:
(1)Jointed by 60mm*40mm tube
(2)Size: 1.0m long*0.8mwide*0.6-1mhigh
(3)One out table with two support rollers
Zhangjiagang City Saibo Science & Technology Co, . Ltd is a professional manufacturer specializing in the developing and exporting of roll forming machine and welding pipe line, such as Metal roof & wall panels machine, C&Z purlin machine, drywall stud-track forming machines, Metal deck machines, K-span and columniation curves forming machines, and guard rail forming machines, downspout roll forming machine, weld pipe machine line and so on.
Our company, which is located in Zhangjiagang city, is close to Zhangjiagang Economy Development Area and Shanghai City with superior geographic and convenient transportation.
Since 90s, in 20 centuries, the market for steel structure building industry boomed but with the development of steel structure industry, the shorter period for construction and beautiful external appearance, as well reasonable price was occupied in the market of building industry.
Zhangjiagang Saibo Science & Technology Co, . Ltd engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machine for our regular customer. In particular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality, and installation. Our goal is" future by heartiness, faith leads to the world"
Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
