| Prod Model: |
DX 850 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
850 Corrugated Iron Sheet Making Machine/Galvaniz |
| Processing Material: |
Galvanized Steel/Colored Steel Coil |
| Material Thickness: |
0.3-0.8mm |
| Effective Width: |
850mm |
| Feeding Width: |
1000mm |
| Main Motor Power: |
4 Kw |
| Pump Power: |
4 Kw |
| Speed: |
8-12m/Min |
| Shaft Diameter: |
75mm |
| Forming Steps: |
13 Steps |
| Forging Forming Method: |
Mold Forging |
Product Description

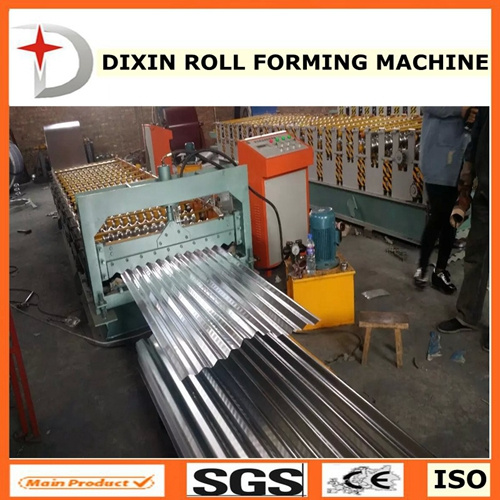

Corrugated iron roofing sheet roll forming making
2. Technique parameters
(1) Processing material: galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: 850mm
(4) Feeding width: 1000mm
(5) Main motor power: 4 kw
(6) Pump power: 4 kw
(7) Speed: 8-12m/min
(8) Shaft diameter: 75mm
(9) Forming steps: 13 steps
(10) Roller material: 45# forged steel, with hard chrome plating
(11) Main frame: 300H steel
(12) Medium plate thickness: 14mm
(13) Control systerm: PLC computer control with inverter
(14) Power supply: 380V, 3 Phase, 50Hz
(15) 0veral sized: 6500mm*1500mm*1200mm
Equipment Components
Decoiler 1Unit
Feeding Guide 1 Unit
Roll Forming System: 1 Unit
Press&Cutting Device 1 Unit
Hydraulic Station 1 Unit
PLC control System 1 Unit
Runout Table 2Units
| 1 | Coil width | 1000mm |
| 2 | Cover width | 850mm |
| 3 | Coil sheet thickness | 0.2-0.8mm |
| 4 | Material of frame | 300H steel |
| 5 | Diameter of shaft (solid shaft) | (high grade) 45# Steel |
| 6 | Diameter of shaft (solid shaft) | 75mm |
| 7 | Treatment of roller | quenched and tempered treatment, hard chromized coated 0.05-0.07mm |
| 8 | Thickness of middle plate | 14mm |
| 9 | Forming station | 13 stations |
| 10 | Drive type of roll forming machine | drive by chain(0.8 inch) |
| 11 | Power of main motor | 4KW |
| 12 | Motor power of hydraulic station | 4KW |
| 13 | Oil pump of hydraulic station | No.46 gear oil pump (high grade) |
| 14 | Forming speed | about 8-12 m/min |
| 15 | Voltage | 380V/50Hz/3phase |
| 16 | Hydraulic cutting | cutting controlled by PLC |
| 17 | Accuracy of cutting | +/- 1mm |
| 18 | Razor blades material | Cr12, quenching 58-62 ° |
| 19 | Electrically controlled system | entire machine controlled by PLC |
| 20 | PLC | DELTA(TAIWAN) |
| 21 | Weight of main forming machine | About 3 T |
3.Payment term: 30%TT in advance,70% before the shipment.
4.Warranty: 12 month, and lifelong technician support.
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping and sandwich panel forming machine.
We exports to most of the world. USA, UK, Africa, Russia, Indian and many other countries.
The davantage of our factoy is that
1. Many panel profile drawing machine designs available
2. Good quality machine
3. Good communication and good after sale service
In the next five years, we provide much better quality machine at reasonable price but competitive than Other supplier. So we can earn more market in the world.
Pls contact for more business.
