| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 500KG |
| Pay Type: | T/T,Western Union |
| Prod Model: | JIS: NAK80 / GB: 1Ni3Mn2CuAlMo |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: | Nak80 |
| Thickness: | 120 ~ 800mm |
| Width: | 335 ~1200mm or as Requried |
| Length: | 2500~4000mm or as Required |
| Package: | Export Standard Packing or Customers' Demand |
| Place Of Origin: | Shenzhen,China |
| Delivery: | 7-30 Days After Deposit |
| Standard: | BS |
| Technics: | Forged |
| Application: | Die Steel Bar |
| Alloy: | Alloy |
| Special Use: | Mold Steel |
| Surface: | Milled Surface |

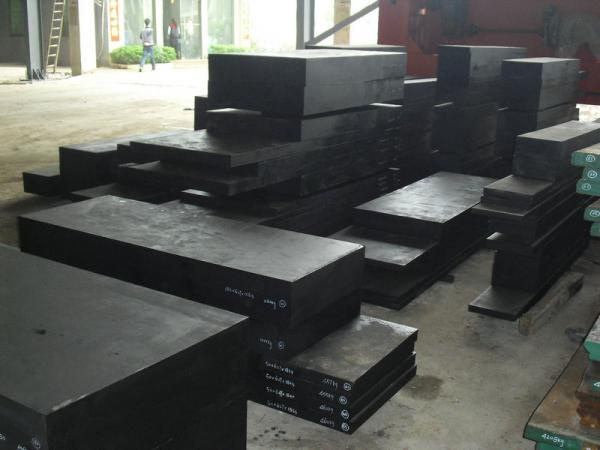

1. Forged condition, Pre-harden & tempering, milled surface
2. Hardness: 38~42HRC
3. Forged technology: EAF+LF+VD+ESR+Forging +Q T + Machined surface
4. Production leadtime: 7~30 days
Applications:
· Used for high-grade mirror mold (Molds for transparent, e. G. Cosmetics containers, food containers and daily electrical appliances. )
· Used for the mold focusing on discharge machining surface, (Molds for such products as fruit plate, food box, computer casing, keyboards and automobile interior decorations)
Used for plastic molds under long production at high precision. (Molds for such products as electrical switches, multifunctional sockets, plugs, charger cashing and computer parts. )
Competitive Advantage:
1. Good workability and mirror polishing property, suitable for thermoset molding of general resin
2. Material is a steel smelted by using refining degassing and ESP remelting, suitable for super-mirror
molds with high polishing property requirements.
3. Stable hardness after electric spark machining, easy to repair and Polish the mold
4. Competitive price
5. Fast production leadtime
Specification:
| Steel plate(mm) | |||
| Thickness | Width | Length | |
| Forged condition | 120 ~ 800 | 335 ~1200 | 2500~4000 |
Chemical composition:
| C | Si | Mn | Ni | Cu | Mo | Al | P&S | Cr |
| 0.1-0.15 | 0.15-1.0 | 1.0-2.0 | 2.50-3.50 | 0.70-1.50 | 0.10-0.40 | 0.7~1.1 | ≤0.03 | ≤0.05 |
| Compared grades(based on usage) |
| GB | JIS |
| 1Ni3Mn2CuAlMo | NAK80 |
