| Name: |
EPS Sandwich Panel Line Roll Forming Machine |
| Forging Forming Method: |
Cold Roll Forming |
Product Description

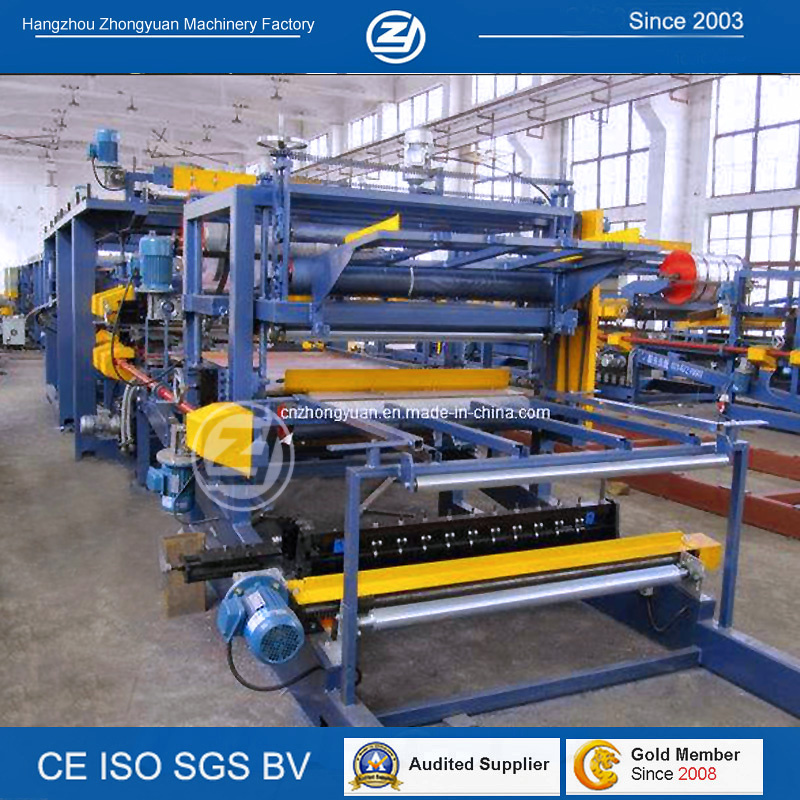

EPS Sandwich Panel Line Roll Forming Machine
Brief introduction
Esp sandwich panel machine could make the polystyrene core sandwich panel. This sandwich panel product line adopts PLC and touch screen controlling system. It could make both roof and wall sandwich panel with core of polystyrene foam material.
Due to its simple operation, this forming machine is widely used in the construction of steel structure enclosures, warehouse, workshop, cold storages, and mobile buildings.
In order to satisfy various customer requirements, we design and manufacture EPS sandwich panel lines in different specs, models and configurations.
Main components
EPS sandwich panel machine mainly consists of uncoiler, roll forming machine, laminating system, cutting device, electric control system, and pneumatic system.
EPS sandwich panel spec
Panel thickness
Mini thickness 50mm (wall panel)
Max. Thickness 200mm(exclude corrugated sandwich panel)
Steel sheet spec
Thickness 0.4-0.7mm color steel sheet
Width 1250mm (we can design according to buyer`s requirement)
Max. Coil weight 5 tons
Inner dia. Of coil 508mm
Whole line dimension: About 35000mm × 2500mm × 3000mm
Total weight: About 20t
Working speed: About 3-5m/min (adjustable)
The output: 1500m2-2000m2/8hour
Control mode: PLC and converter
Total power: About 28kw (as per final designing)
Power required: 380v/3phase/50Hz or as per customer's requirement.
Air pressure: 0.7mpa (for buyer to prepare)
Suitable working temperature: About 25 degree
| Panel width | 950mm, 1150mm (according to profile requirement) |
| Panel thickness | Mini thickness:
50mm (corrugated sandwich panel)
50mm (wall panel) |
|
|
Max. thickness:
200mm (exclude corrugated sandwich panel) |
|
Steel Sheet Spec (we can design as per buyer's special requirement ) |
|
| Thickness | 0.4-0.7mm color steel sheet |
| Width | 1250mm, 1000mm |
| Max. coil weight | 5tons |
| Inner Dia. of coil | 508mm |
| Whole Line Spec |
|
| Working speed | Max.5m/min (adjustable) |
| Total length | about 35m |
| Control mode | Misubishi PLC |
| Total power | about 28Kw |
| Power required | 380V/3phase/50Hz or as per customers requirement |
Components: |
|
| 1. Manual decoiler |
| 2. consecutive laminating body |
| 3. pre-heat system |
| 4. glue providing |
| 5. heater |
| 6. PLC control system |
