Sandwich Panel Production Equipment
| Price: |
US $ 1080000-1300000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
ZYSPP50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operation Language: |
English or as Required |
| Certificate: |
CE, ISO |
| Cutting Type: |
Cut to Length |
| Cutter: |
Cr12 Mould Steel |
| Panel Core: |
PU |
| Panel Width: |
1000mm |
| Panel Thickness: |
40-150mm |
| Working Speed: |
Max. 7m/Min (Adjustable) |
| Panel Usage: |
Roof or Wall |
| Name: |
Sandwich Panel Production Equipment |
| Forging Forming Method: |
Roll Forming Machine |
Product Description
Sandwich panel Production Equipment
1. Manufacturing roll forming machine since 2003
2. With ISO,SGS,BV and CE certificate
3. 1 year quality warranty
4. Export to more than 20 countries
5. Technician can be sent to your factory to install the machine and train your workers
Detailed Product Description

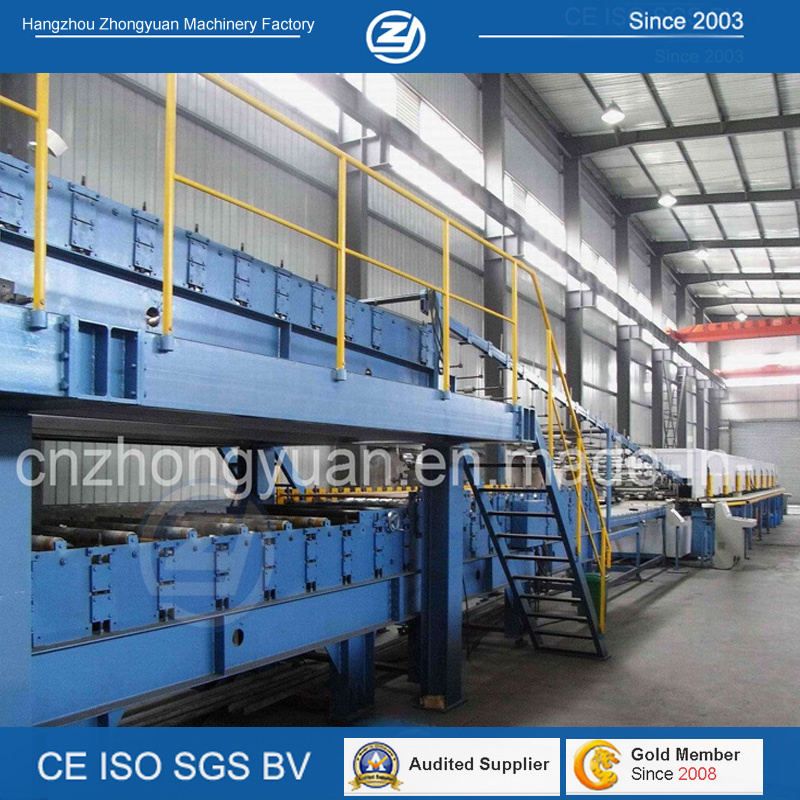

PU Sandwich panel forming machine
Used to make PU sandwich wall panel or roof panle contimuously
Thickness of panel: 50-150mm
Components Of the machine:

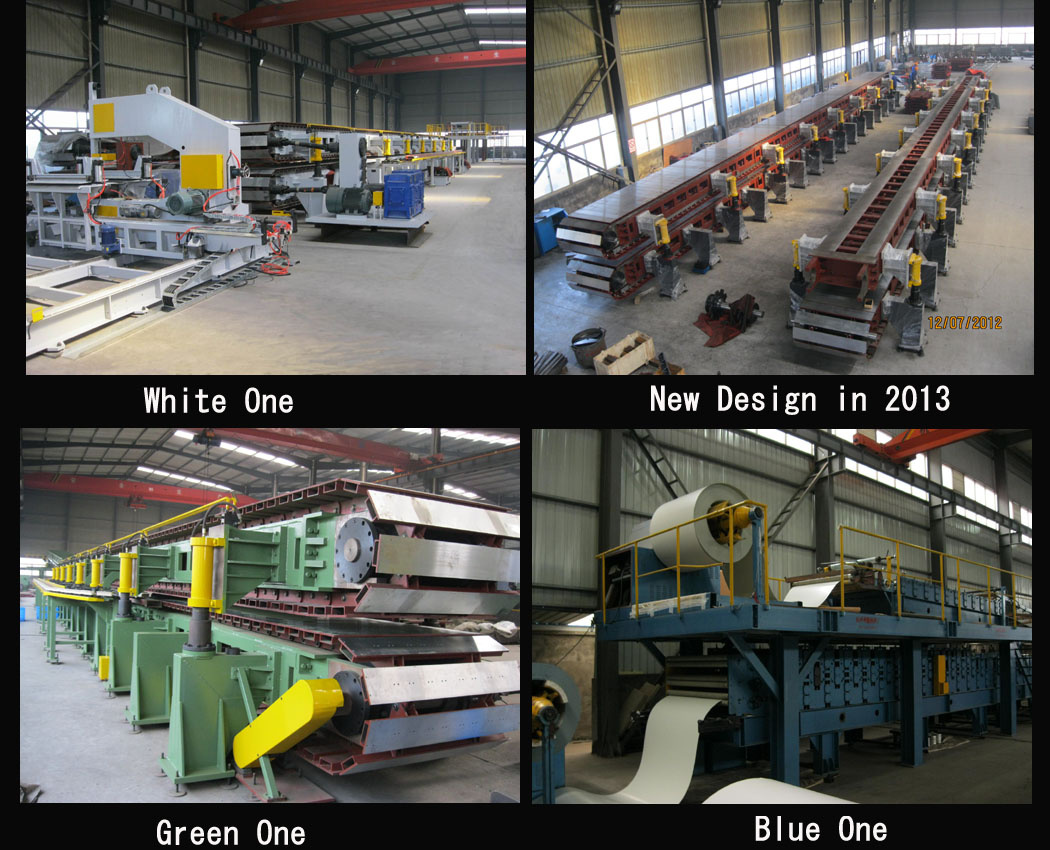

The PU sandwich panel line includes the following parts: Hydraulic powered uncoiler, film covering equipment, roll forming machine, preheating oven, polyurethane foaming system, double belt conveyor, cutting device, automatic stacker (for option) and so on.
Main Technical Parameters:
Sandwich Panel Spec
Panel width 1000mm (according to profile requirement)
Panel thickness Mini thickness: 40mm (corrugated sandwich panel)
50mm (wall panel)
Max. Thickness: 150mm (exclude corrugated sandwich panel)
Coil Steel Sheet Spec
Thickness 0.4-0.7mm
Width 1250mm
Yield strength ≤ 235MPa
Max. Coil weight 5tons
Inner Dia. Of coil 508mm
Whole Line Spec
Working speed max. 7m/min (adjustable)
Total length about 80m

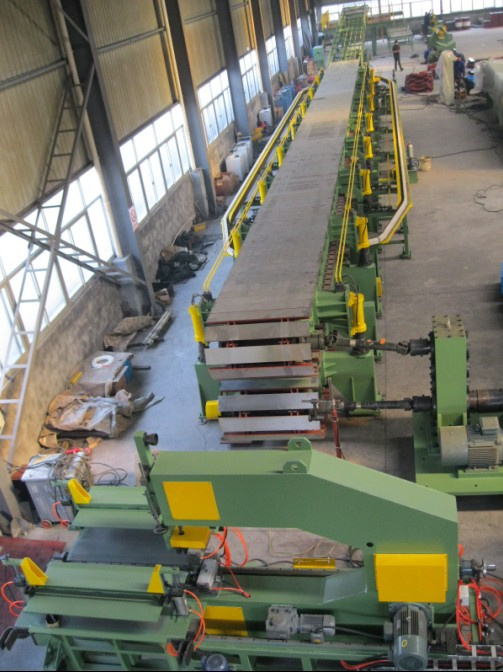

Double belt conveyor 23m

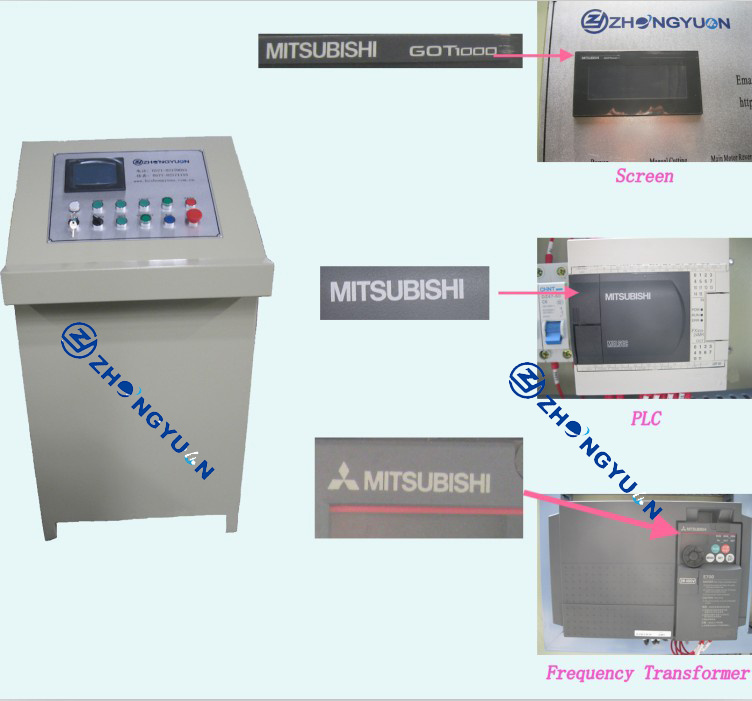

Control mode PLC
Total power about 100Kw
Power required 380V/3phase/50Hz or as per customers requirement
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.
At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.
At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.
Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.
We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
