| Prod Model: |
DIN 1.2312/AISI P20+S/GB 40CrMnMoS8-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
DIN 1.2312/AISI P20+S/GB 40crmnmos8-6 |
| Thickness: |
150-600mm |
| Width: |
610~1200mm or as Required |
| Length: |
2500~4000mm or as Required |
| Package: |
Export Standard Packing or Customers' Demand |
| Place Of Origin: |
Shenzhen,China |
| Delivery: |
7-30 Days After Deposit |
| Type: |
Steel Plate |
| Standard: |
BS |
| Certification: |
SGS |
| Special Use: |
High-strength Steel Plate |
| Stock: |
Stock |
| Surface Treatment: |
Black or Milled Surface |
| Technique: |
Forging |
| Application: |
Tools for Synthetic Plastics Processing, Die Hold |
Product Description

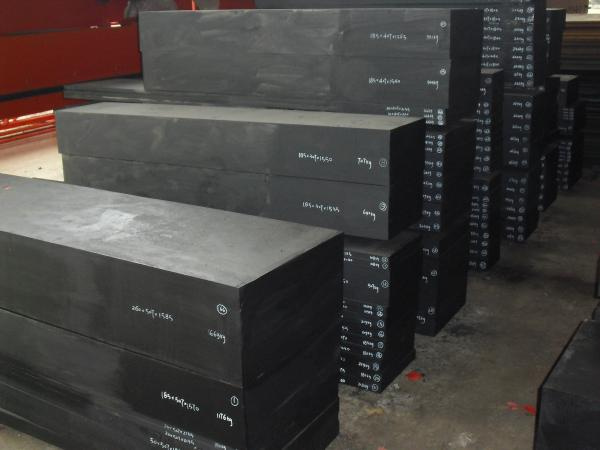

GB 40CrMnMo Forging Die Steel Plate
1. Condition:Forged , Pre-harden &tempering , black or milled surface
2. Hardness: 30~36HRC
3. Forged technology: EAF+LF+VD+ESR+Forging +Q T + Machined surface
4. Production leadtime: 7~30 days
5. Chemical composition:
C:0.35-0.45 Si:0.30-0.50 Mn:1.40-1.60 P≤0.035
S:0.05-0.10 Cr:1.80-2.00 Mo:0.15-0.25
6. Heat Treatment:
Annealing: 710 - 730 °C
Hardness after annealing: Max. 230 HB
Stress relieving: Approx. 650 °C
Hot forming: 1050 - 850 °C
Hardening: 870 - 890 °C
Quenching media: Oil, Salt bath, Vacuum
Hardness after quenching: 50 - 54 HRC
7.Applications:
Injection dies without special surface requirements and low mechanical stresses, medium and large sized
moulds for plastic processing, dies of light alloys with low melting point, mould fittings, mould frames for the
injection molding and die casting industries, components for general mechanical engineering, tools for
synthetic plastics processing, die holders, support plates, casings, chases, recipient sleeves, constructional
parts, hyrdo forming tools
8. Competitive Advantage:
1. Excellent machined ability properties with high S content
2. Good Toughness properties
3. Strong wear resistance
4. Uniform hardness of material and stablitity
5. Competitive price
6. Fast production leadtime
Chemical composition:
Grade |
C |
Si |
Mn |
P |
S |
Cr |
Mo |
1.2312 |
0.35-0.45 |
0.30-0.50 |
1.40-1.60 |
≤0.035 |
0.05-0.10 |
1.80-2.00 |
0.15-0.25 |
Compared grades(based on usage):
GB |
AISI |
DIN |
40CrMnMo |
P20+S |
1.2312 |
Specifications:
|
Steel plate(mm) |
|
Thickness |
Width |
Length |
Forged condition |
150~600 |
610~1200 |
2500~4000 |
