| Prod Model: |
DX 980/915/750/688/720/1000/1050 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Metal Sheet Forming Machine |
| Processing Material: |
Aluzinc/Galvanized Steel/Colored Steel Coil |
| Material Thickness: |
0.3-0.8mm |
| Feeding Width: |
914/1000/1220/1250 According to Customers Request |
| Main Motor Power: |
4 Kw |
| Pump Power: |
4kw |
| Shaft Diameter: |
75mm |
| Main Frame: |
300h Steel |
| Medium Plate Thickness: |
16m |
| Power Supply: |
380V, 3 Phase, 60Hz |
| Forging Forming Method: |
Mold Forging |
Product Description

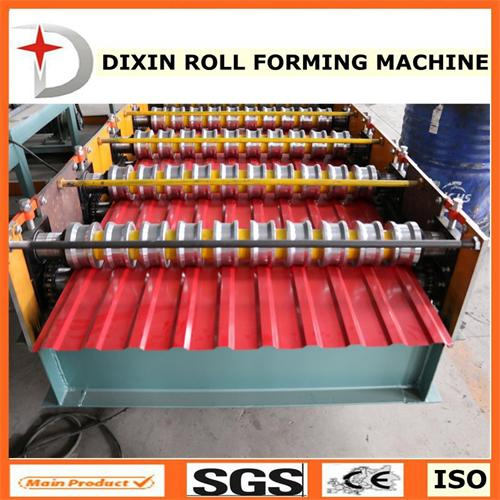

hebei roll forming machine,metal sheet forming machine
2. Technique parameters
(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: according to customer's request
(4) Feeding width: according to customer's request
(5) Main motor power: 4 kw
(6) Pump power: 4kw
(7) Shaft diameter: 75mm
(8) Forming steps: 13-18steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 300H steel
(11) Medium plate thickness: 16m
(12) Control systerm: PLC computer control with inverter
(13) Power supply: 380V, 3 Phase, 60Hz or as your requirement
3. Work flow
Manual decoiler-Roll forming machine-PLC control-Hydraulic system -Post cut-Stacking
4. Components of production line
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | Post cut | set | 1 |
| 6 | Electric motor | set | 1 |
| 7 | Output table | set | 2 |
5. Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg
(1) Hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.
(1) Computer control cabinet
It adopts Delta PLC to control, the target sheet length is adjustable.
Computed mode has two modes: automatic and manual.
0kg
(1) Output table
It is used to load the finished sheet. This kind is convenient for shipment.
6. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
7. Warranty
12 months, and lifelong technical support service
8. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 50 USD/day for salary.
9. Package
Standard export package, water-proof package, covered with plastic film
10.Service
One year warranty and lifelong technical support will be provided.
If you come here,we can teach you how to use it on-site for free.If not,We can learn by video.It is easy to operate.
We can send our technicians to you to give you on-site training. The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of USD 50.
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping and sandwich panel forming machine.
We exports to most of the world. USA, UK, Africa, Russia, Indian and many other countries.
The davantage of our factoy is that
1. Many panel profile drawing machine designs available
2. Good quality machine
3. Good communication and good after sale service
In the next five years, we provide much better quality machine at reasonable price but competitive than Other supplier. So we can earn more market in the world.
Pls contact for more business.
