| Prod Model: |
JD-AB500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Jingda Foundry Machinery Manufacturer, The Cheapest and High Quality Gravity Die Casting Machine In China
Over 20 Years Factory, Own the Domestic First-Class Team and Professional Design Team, Integrating production, sales and after-sales, Own Exporting License, High Quility Products, Competitive Price, OEM, Timely Delivery.

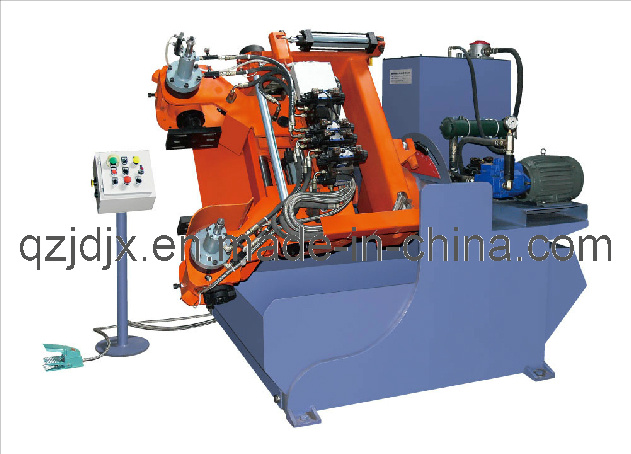

JD-AB500 Gravity Die Casting Machine
It's a machine used in casting not only copper but also brass. For aluminum and zinc casting, please refer to our products JDXZ-600.
Main Specifications and Technical Parameters
Maximum Outlined Diameter of Mold 500mm
Maximum Weight of Mold 150kg
Maximum distance of mold base plate 510mm
Maximum clamping stroke 270mm
Angle range of measured-cast 0° -90°
Angle range of mold immersion 0° -110°
Angle range of mold immersion 0° -90°
Oil Pressure 50-70bar
Power capacity 3.75+0.75+0.75W
Three phase power 380V/50Hz(per customers requirement)
Oil tank capacity 220L
Volume of mold immersion tank 375L+375L
Net weight of the Equipment 2000kg
Maximum dimension of the equipment 1650*2300*1720mm
Specifications
1)Passed ISO9001: 2000
2)Competitive Price
3)Top Product Quality
4)Prompt Delivery
On technology,
We constantly innovate, and strive to high-tech and high quality;
On the process,
We strive for perfection, breakthrough tradition and strive for excellence;
On management,
We emphasize science, pursue internationalization management concept;
On the service,
We adhere to the principles, advocate the unique principle of "customer first";
Company tenet: "carefully manufacture, meticulously design, sincerely serve" for the purpose.
Our certificate
Our workshop
| Main specifications and technical parameters |
|
| Maximum outlined diameter of mold | 500 mm |
| Maximum weight of mold | 150 kg |
| Maximum distance of mold baseplate | 510 mm |
| Maximum clamping stroke | 270 mm |
| Angle range of lateral casting | 0-90deg |
| Angle range of pre-casting | 0~110 deg |
| Angle range of mold immersion | 0~90 Centigrade |
| Oil pressure | 50~70 bar |
| Power capacity | 5.25 kw |
| Three phase power | 380 V/ 50Hz |
| Oil tank capacity | 220 L |
| Capacity of mold immersion tank | 750 L |
| Machine weight | 2000 kg |
| Machine size( L× W× H) | 1650mm× 2300mm× 1720mm |
| The advantage of gravity casting technology |
| Item | Gravity casting technology | Foundry casting technology |
| Product quality | The structure of the casting is compact
and both of its inside and outside surfaces
are smooth . The sizes of castings are
concordant . The fine machining
speed is fast and polishing rate is high . | There are some dregs and sands on
the surface of the castings. Its structure
is loose and both of the inside and
outside surfaces are rough. The sizes of
castings are not concordant . The fine
machining speed is slow and polishing
rate is low. |
| Qualified rate | 92%~98%, high qualified rate | High rejection rate |
| Labor productivity | It needs only 7 persons . | It needs more than 14 persons . |
| Pollution situation | Casting temperature is low . Its pollution
and noise are also low . | It produces smoke . Its pollution and noise
are high . |
Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.
Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.
We offer free professional technician training service to help technicians in well mastering the equipment operation and achieving the expectation.
We always abode by its principle of "the quality of survival, technology for development". Through constantly creating, hard-working and innovation to create superior products, improve company's strength and perfect the market system. We are dedicated to provide customers with comprehensive after-sales services. We will hold hand by hand with all customers home and abroad to create more achievements with our best sincerity.
