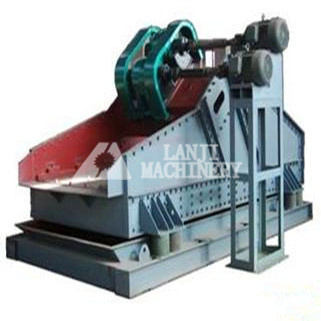

High Quality Screening Machine with ISO 9001

High Quality Screening Machine with ISO 9001
Price: US $ 3300/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: YK Series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screening Machine Max Feeding: 400mm
Capacity: 8-500t/H
Screening Machine Frequency: 800r/Min
Power Consumption: 5-15kw
Screening Machine Double Amplitude: 8-11mm
Weight: 3500kg
Screening Machine Warranty: 1 Year
After Sale: 48 Hours After Receive Report
Screening Machine Feeding Materials: Stone, Mine, Others
Installation: Guide by Engineer
Type: Circular
Object: Ore
Shaft Number: Single
Condition: New

Product Description

Screening Machine description:

Screening Machine is specially designed for quarries to screen stone materials. They are also available for the building materials, sandstone, mining and coal industry to classify the small and medium-sized granularity. The surface of vibrating screen has single layer, double layers, three layers and four layers, it can select products Screening Machine from grade 2 to 5. It can get different particle size products by changing the screen specification.

Operation principle of Screening Machine :
The Screening Machine make the exciter eccentric producing high-speed rotation through the triangle belt .The operation of the eccentric produce great centrifugal force ,exciting the screen box to do a certain amplitude circular motion .The materials on the sieve get the impulse from the screen box on the inclined screen surface to do Screening Machine continuous casting movement .During the process of encounter between materials and screen surface ,the granule smaller than the sieve will go Screening Machine through the sieve to achieve classification .

Screening Machine Working Principle:
Screening Machine is compiled of mainframe, screen web, rub spring, electric motor, coupler and some more. It has several layers and is of high efficiency. Screening Machine haft vibration exciter and partial block help to adjust amplitude. The material drops down along the long line.


technical parameter

vibrating screen
Model

Sieve
 Layer

Max. Feeding
Size(mm)

Capacity
(m³/h)

Motor
Power (kw)

Weight
(kg)

2YK1225

2

400

8-60

5.5

2500

3YK1225

3

400

10-70

5.5

2850

2YK1230

2

400

12-78

7.5

3000

3YK1230

3

400

13-80

7.5

3600

2YK1237

2

400

15-86

7.5

3600

3YK1237

3

400

16-90

7.5

4200

2YK1535

2

400

20-125

11

4890

3YK1535

3

400

21-125

11

5700

2YK1545

2

400

22-150

15

5330

3YK1545

3

400

22-150

15

5800

2YK1548

2

400

22.5-162

15

5980

3YK1548

3

400

22.5-162

15

6600

2YK1848

2

400

25-206

15

7080

3YK1848

3

400

32-276

18.5

7600

2YK1854

2

400

32-312

18.5

8150

3YK1854

3

400

32-312

22

8840

2YK2160

2

400

50-475

30

9780

3YK2160

3

400

50-475

30

10800

2YK2460

2

400

65-550

37

13600

3YK2460

3

400

70-620

37

15600


Henan LanJi Machinery Manufacturing Co., Ltd. is a jiont-stock mining machinery manufacturing enterprises integrated in scientific research, production and marketing. It is located at the Hig-Tech development Zone Zhengzhou, China with an area of 80 thousand square meters. Equipments are more than 200 pieces, including large and medium sized metal processing, riveting and installing equipments. Engineers are more than 50 persons.

The leading products of our company include: Beneficiation equipment, crushing equipment, sand making equipment, cement equipment, Aerated concrete block production line. Widely used in the industries of metallurgy, mining, railway, high-way, building materials, refactory, ceramic industry, etc. Complete set of ore beneficiation equipment include ball mill, crusher, magnetic separator, flotation machine, spiral classifier, rotary dryer, widely used to separate the non-ferrous metals such as iron ore, copper ore, gold ore, lead&zinc, manganese ore, molybdenum ore, etc. And the Non-metallic Minerals like fluorite, quartz, etc. Jaw crusher, impact crusher, sand making machine, vibrating screen, sand washing machine, belt conveyor are widely used for the airport, railway, high-way, road, buliding, etc. Aerated concrete block has been one important part to the new buliding materials. We can provide program design, process flow design, standard and non-standard design for clients.

Our company has passed ISO9001-2008 quality certificate, the produce sell well to domestic and abroad, Such as South Asia, Russia, Central Asia, Africa, Middle-east, etc.

Our company's tenetis "Advanced technology, quality first, sincere service, reputation first". We can ensure our clients without worry after buying by one set of complete after-sales service and quality-tracking system.

We sincerely hope to cooperate with the clients from all over the world to achieving mutual benefits and promotion, ans touching our theory through cooperation!
