| Prod Model: |
JD-AB500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1650mm*2300mm*1720mm |
| Net Weight: |
2000kg |
| Maximum Weight Of Mold: |
150kg |
| Maximum Outlined Diameter Of Mold: |
500mm |
| Maximum Distance Of Mold Base Plate: |
510mm |
| Maximum Clamping Stroke: |
270mm |
| Angle Range Of Measured-Cast: |
0-90 |
| Angle Range Of Pre-Cast: |
0-110 |
| Power Capacity: |
3.75+0.75+0.75kw |
| Volume Of Mold Immersion Tank: |
375L+375L |
Product Description

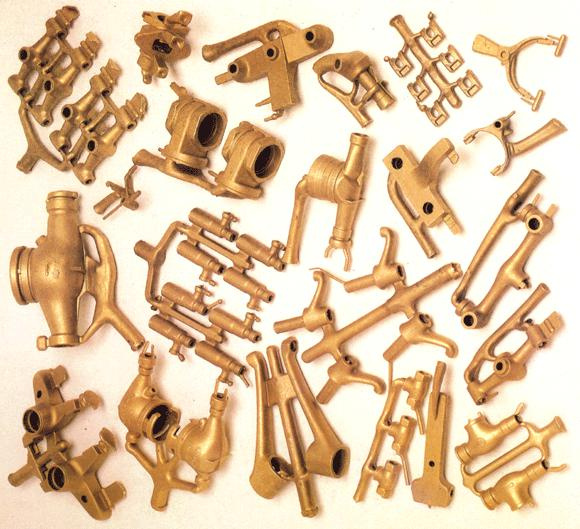

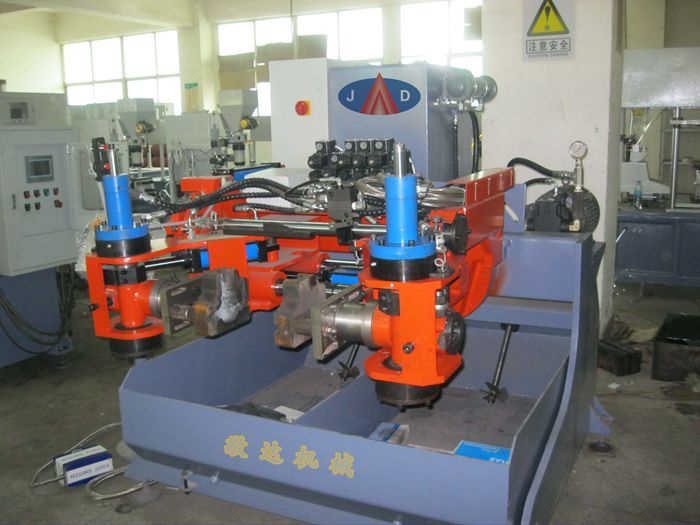

√ Over 20 Years == √ Factory == √ Own Exporting License == √ Quality Control == √ Competitive Price == √ Own Technology == √ OEM==Short Delivery TimeJD-AB500 Gravity Die Casting Machine1. ApplicationJD-AB500 Gravity Die Casting Machine is used for producing copper alloy casting of large and medium size or casting of small size whose molds contains several cavities.
Compared with traditional foundry casting technology, gravity die casting technology is more advanced and safe. It can increase productivity and reduce labor pressure. It will cause low pollution and little noise. It's operation is also easy to master. Copper consumption and rate of spoiled product are low.
2. Machine componentsThe machine consists of three parts, such as mechanical part, pneumatic part and electrical part. Material used in mechanical part is well selected steel. Both pneumatic part electrical part use products of world-famous brands. Therefore we can make sure our machine's quality is high.
3. Main specifications and technology parameters:1). Maximum outlined diameter of mold: 500mm
2). Maximum weight of mold: 150kg
3). Maximum distance of mold base plate: 510mm
4). Maximum clamping stroke: 270mm
5). Angle range of measured-cast: 0-90
6). Angle range of pre-cast: 0-110
7). Angle range of mold immersion: 0-90
8). Oil pressure: 50-70bar
9). Power capacity: 3.75+0.75+0.75kw
10). Three phase power: 380V/50Hz
11). Oil tank capacity: 220L
12). Volume of mold immersion tank: 375L+375L
13). Equipment net weight: 2000kg
14). Equipment maximum outlined size: 1650mm*2300mm*1720mm
4. About the after-sale servicesIn the meantime, we own strong administrant and technical teams to ensure that our innovation and improvement ability can keep up with changeable market requirements. In order to satisfy our customers better, we can also make machines according to our customers' specific needs.
Our after-sale service is prompt and patient. Once you place an order, we are willing to give you support in installment and labor training. During the production period, if you meet any problems that you are not able to deal with, you could contact us. We will try our best to help.
| Main specifications and technical parameters |
| maximum outlined diameter of mould | 500mm |
| maximum weight of mould | 150kg |
| maximum distance of mould base plate | 510mm |
| maximum clamping stroke | 270mm |
| angle range of measured-cast | 0°-90° |
| angle range of pre-cast | 0°-110° |
| angle range of mould immersion | 0°-90° |
| oil pressure | 50-70bar |
| power capacity | 3.75+0.75+0.75kw |
| three phase power | 380V/50Hz |
| oil tank capacity | 220L |
| volume of mould immersion tank | 375L+375L |
| equipment net weight | 2000kg |
| equipment maximum outlined size(L*W*H) | (1650*2300*1720)mm |
Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.
Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.
We offer free professional technician training service to help technicians in well mastering the equipment operation and achieving the expectation.
We always abode by its principle of "the quality of survival, technology for development". Through constantly creating, hard-working and innovation to create superior products, improve company's strength and perfect the market system. We are dedicated to provide customers with comprehensive after-sales services. We will hold hand by hand with all customers home and abroad to create more achievements with our best sincerity.
