HP-M Series Sliding Cylinder RAM Iindustrial Hydraulic Press (HP-150M)
Price: |
US $ 1/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
HP-150M |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Capacity: |
1500kn |
Pressure: |
30MPa |
Travel: |
250+405mm |
Weight: |
1350kg |
Forging Forming Method: |
Mold Forging |
Power Source: |
Hydraulic Pressure |
Advantage: |
Use Widely |
Product Description
· Dealing directly with the manufacture- no middle man!
· The most competitive pricing in the market.
· High quality control standards, such as ISO, CE
· Guaranteed delivery time.
· Prompt attention to the customer inquiries.
· Diverse services for your needs, including sourcing other machinery, inspection goods for you by our engineers, product process tracking and good delivery.
· Research and Development to meet the customer and the market need.
Description

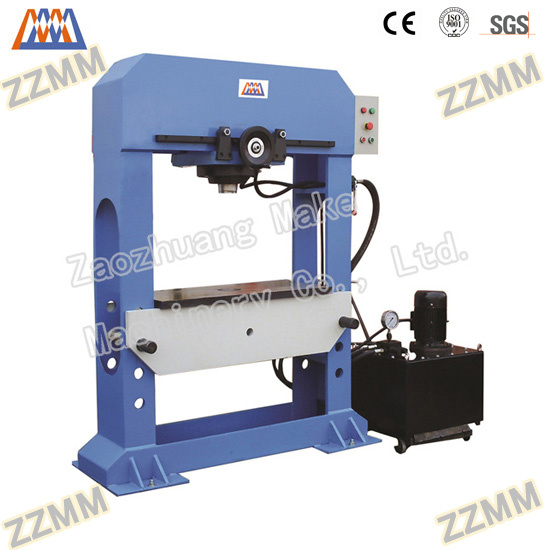

100 tonne with SLIDING CYLINDER RAM INDUSTRIAL HYDRAULIC PRESS
Suited for the Industrial workshop, for the repair of axles removal & press fit of bearings & bushings
Features
- Easy to use and powerful press for most applications
- Ideal for the repair of axles, shafts, & press fit of bearings & bushings
- Ram can be repositioned via crank hand wheel, slides left or right
- Ram speed down 8.5mm/sec, returns 8.0mm/sec
- Heavy duty welded steel fabricated frame
- Strong hydraulic cylinder ensures precise pressing during operation
- Fitted with pressure gauge
- Safety overload valve
- Hydraulic joystick control lever
- Powerful TEFC motors
- Heavy duty one piece table plate insert
- Extra heavy duty table support with high tensile setting pins
- Table can be adjusted for height using chains and Hydraulic ram
- Pre-Commissioning:
- 1. Press is run & tested prior delivery
- 2. Hydraulic oil is included with machine
Includes
model | units | HP-50M | HP-63M | HP-100M | HP-150M | HP-200M | HP-300M | HP-400M |
capacity | kn | 500 | 630 | 1000 | 1500 | 2000 | 3000 | 4000 |
pressure | Mpa | 25 | 25 | 30 | 30 | 31.5 | 31.5 | 31.5 |
travel | mm | 220+405 | 220+405 | 250+405 | 250+405 | 300+405 | 300+405 | 300+405 |
Table size | mm | 400*500 | 400*500 | 440*980 | 440*980 | 500*1000 | 700*1200 | 800*1200 |
dimension | mm | 1500*650*1950 | 1500*650*1950 | 1730*730*2250 730*630*960 | 1730*730*2250 730*630*960 | 1940*950*2350 900*800*1060 | 2100*950*2700 1100*1200*1350 | 2300*1000*2900 1100*1200*1350 |
weight | kg | 980 | 1020 | 1220 | 1350 | 2200 | 4200 | 5500 |
- Includes support plate & V blocks
The main products include machine tools like Plano Miller/Plano Milling Machine/Gantry Milling Machine/Planer Milling machine, Conventional Milling Machine & Milling/Drilling Machine, Vertical Lathe, Horizontal Lathe, Radial Drilling Machine, Vertical Drilling Machine, Gear Shaper & Hydraulic Shaper, Press, Shearing Machine, Press Brake, Saw Machine, Riveting Machine, Air Hammer, etc; Accessories like Vice, Angle Clamp, Slotting Head, DRO, Dividing Head, Rotary Table, Grinding wheel balancer, Universal Boring Head, Clamp kits, etc. And the other product range is garage equipments like Cylinder(Blocks) Boring Machine/Fine Boring Machine, Cylinder Honing Machine, Brake Drum Boring Machine, Brake Lathe/Brake Drum(Disc) Cutting Machine, etc.
All of them have adopted modernized ISO Quality Management System, sound operational procedures as well as effective service system. All the commodities are carefully produced and we bear in mind that products with consistent good quality are crucial to the ongoing success of your operations.
