| Prod Model: |
HP-500M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
500kn |
| Motor Power: |
11kw |
| Gantry Width: |
1200mm |
| Table Size: |
1200*800mm |
| Forging Forming Method: |
Mold Forging |
Product Description
Description

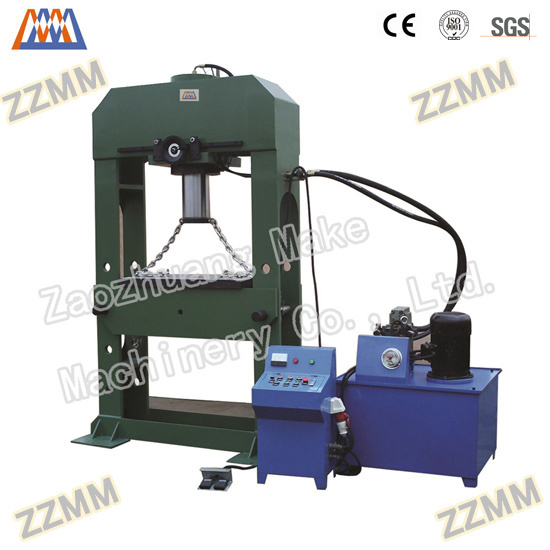

500 tonne with SLIDING CYLINDER RAM INDUSTRIAL HYDRAULIC PRESS
Suited for the Industrial workshop, for the repair of axles removal & press fit of bearings & bushings
Features
Easy to use and powerful press for most applications
Ideal for the repair of axles, shafts, & press fit of bearings & bushings
Ram can be repositioned via crank hand wheel, slides left or right
Ram speed down 8.5mm/sec, returns 8.0mm/sec
Heavy duty welded steel fabricated frame
Strong hydraulic cylinder ensures precise pressing during operation
Fitted with pressure gauge
Safety overload valve
Hydraulic joystick control lever
Powerful TEFC motors
Heavy duty one piece table plate insert
Extra heavy duty table support with high tensile setting pins
Table can be adjusted for height using chains and Hydraulic ram
Pre-Commissioning:
1. Press is run & tested prior delivery
2. Hydraulic oil is included with machine
Includes
Includes support plate & V blocks
Model | units | HP-500 |
| capacity | kn | 5000 |
| Cylinder travel(up to down) | mm | 300 |
| Cylinder travel(left to right) | mm | 600 |
| Table travel(up to down) | mm | 600 |
| Gantry width | mm | 1200 |
| Table size | mm | 1200*800 |
| Motor power | kw | 11 |
| Growth type | / | Different |
| Fall speed(quick) | mm/s | 20 |
| Fall speed(slow) | mm/s | 12 |
| Return speed | mm/s | 22 |
| Packing size | mm | 3200*1300*2200
1300*1000*1560 |
| weight | kg | 16000 |
