| Prod Model: |
HRS Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
Product Description
Salient Features:

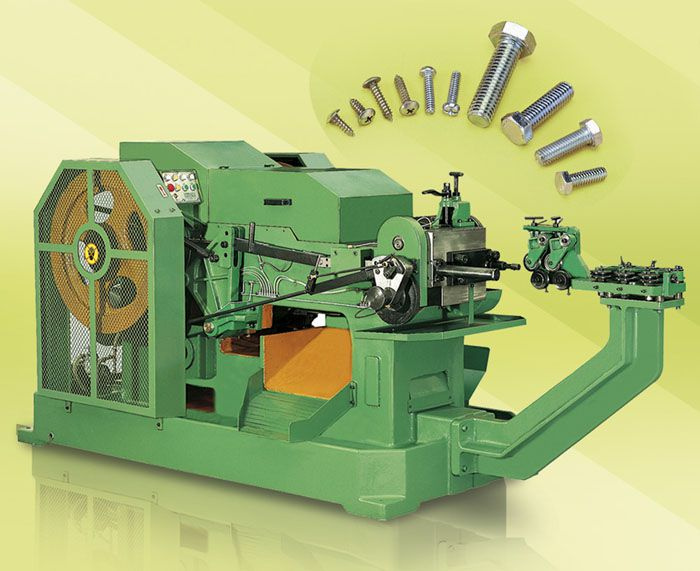

1. These cold heading machines are fully automatic and easy to operate with little training, fitted with Solid Die to produce blank for Bolts, Screws, Rivets and other similar components. Cut off and knock out mechanism have safely devices that will stop any major accident if any abnormal function occurs in machines.
2. A positive knock out provision had been made on the 1st and 2nd punches to eliminate the possibility of parts sticking to these punches during the operations.
3. On some extra charges machines will be equipped with Pneumatic Clutch & Automatic Centralized Lubrications systems which provides sufficient quantity lubricating to all bearing surface.
|
Model |
HRS-5 |
HRS-10 |
HRS-15 |
HRS-20 |
HRS-25 |
HRS-30 |
|
Max. Blank Dia |
3mm |
4mm |
5mm |
8mm |
8mm |
10mm |
|
Max. Blank Length |
27mm |
40mm |
64mm |
110mm |
120mm |
150mm |
|
Stroke |
38mm |
64mm |
92mm |
154mm |
154mm |
220mm |
|
Output PerMin |
170-190 |
120-180 |
130-160 |
70-90 |
80-100 |
60 |
|
Die Dia |
20mm |
34.5mm |
34.5mm |
50mm |
54mm |
55mm |
|
Cut off Die Dia |
13.5mm |
15mm |
19mm |
28mm |
28mm |
28mm |
|
Punch Die(1st) |
18mm |
24mm |
31mm |
38mm |
38mm |
38mm |
|
Punch Die(2nd) |
18mm |
20mm |
31mm |
38mm |
38mm |
38mm |
|
Main Motor Power |
1HP |
2HP |
2HP |
5HP |
7HP |
10HP |
|
Oil Pump Power |
1/4HP |
1/4HP |
1/4HP |
1/4HP |
1/4HP |
|
|
LxWxH (CM) |
137x85x102 |
103x85x95 |
200x100x120 |
300x125x140 |
300x150x140 |
445x174x151 |
|
Net Weight |
500kg |
1100kg |
1600kg |
3000kg |
3000kg |
7200kg |
|
Gross Weight |
560kg |
1180kg |
1700kg |
3200kg |
3700kg |
|
