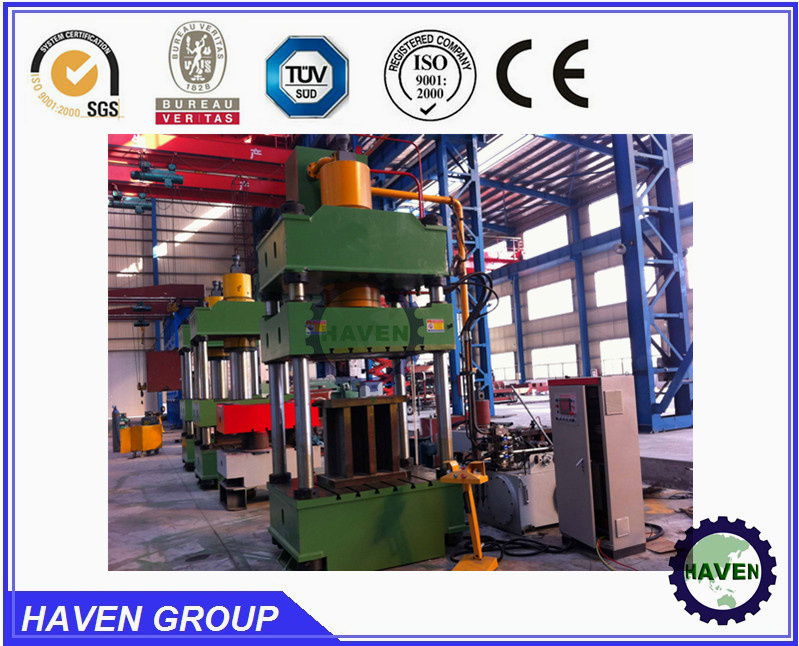

hydraulic press/YQ32 -315 four column hydraulic press machine
| Price: |
US $ 1888/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1Unit |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
YQ32 -315 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Press Brake With Mould: |
Hydraulic Type |
| Capacity: |
3150KN |
| Return Presswe: |
600KN |
| Ejecting Stroke: |
300mm |
| Side Stroke: |
800mm |
| Max Shut Height: |
1250mm |
| Net: |
14000kgs |
| Main Motor: |
22kw |
Product Description
hydraulic forging press/YQ32 -315 four column hydraulic press machine
* Hydraulic press include replaceable top tools v-block, and support table with stops.Table can be lifted through a chain driven by the main cylinder.
* Micro-switch for traverse adjustment.
* Operating modus:Semi-automatic, fully.
Model Capacity Power Piston stroke Weight PackingDimension
HP-30 30t 2.2kW 220mm 600kg 122X46X148cm
HP-50 50t 2.2kW 220mm 780kg 126X60X175cm
HPB-790 50t 2.2kW 220mm 980kg 140X55X175cm
HPB-1010 100t 2.2kW 250mm 1200kg 140X70X175cm
HPB-1500 150t 3.0kW 300mm 1500kg 195X105X195cm
| Model | Capacity | Power | Piston stroke | Weight | Dimension |
| HPB-490 | 490mm / 20t | 1.5kw | 220mm | 270kg | 120x55x168cm |
| HPB-580 | 580mm / 30t | 2.2kw | 220mm | 470kg | 100x45x155cm |
| HPB-790 | 790mm / 50t | 2.2kw | 220mm | 980kg | 146x60x175cm |
| HPB-1010/100 | 1010mm / 100t | 2.2kw | 250mm | 1400kg | 186x82x225cm |
| HPB-1010/150 | 1010mm / 150t | 3.0kw | 300mm | 1700kg | 186x82x225cm |
| HPB-1010/200 | 1010mm / 200t | 4.0kw | 300mm | 2100kg | 200x90x235mm |
We, Shaanxi Haven Equipment & Trading Co., Ltd, is consisted with 2 factories and 1 international trading company, so we can export our products directly at competitive price. To run our business conveniently, we set up our 2 factories in Nantong Industry Zone which is located in the most developed economic area in China and is nearby the Shanghai Sea Port, that will be much helpful to low our export cost.
With experienced engineers and worker, we produce high quality machines and supply good after sale service. In the past years, we are specialized in import and export of machinery and equipment such as machine tools, vehicles maintenance equipments, motors, bearings, hand tools, power tools and industrial materials. Our business scope also includes import and export of technology, contracting overseas projects and engineer training services.
Our products have been exported to more than 30 countries or regions in the world with high quality, We commit ourselves to cooperating with importers and exporters all over the world. We are looking forward to your enquiries and collaboration. Our technicians will assure you of appropriate equipment with reasonable prices and best pre-sale and after-sale services.
Our Business Scope Include: Turning Machines (Lathe), Drilling Machines, Drilling And Milling Machines, Boring Machines, Milling Machines, Machining Centers, Grinding Machines, Tool Grinding Machines, Gear Cutting And Finishing Machines, Planning Machines, Shaping Machines, Slotting Machines, Broaching Machines, Sawing Machines, Cut-Off Machines, Screwing And Threading Machines, Honing Machine, Polishing Machines, Shearring Machines, Press Brakes, Bending Machine, Punching Machine, Iron Worker, Presses, Rolling Machine, Notching Machine, Engraving Machines, Electric Discharging Machine (EDM), etc.
Our target is: High quality, efficient service, reliable honesty.
