| Prod Model: |
W11S-50x3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Thickness: |
50mm |
| Max Width: |
3200mm |
| Forging Forming Method: |
Mold Forging |
Product Description

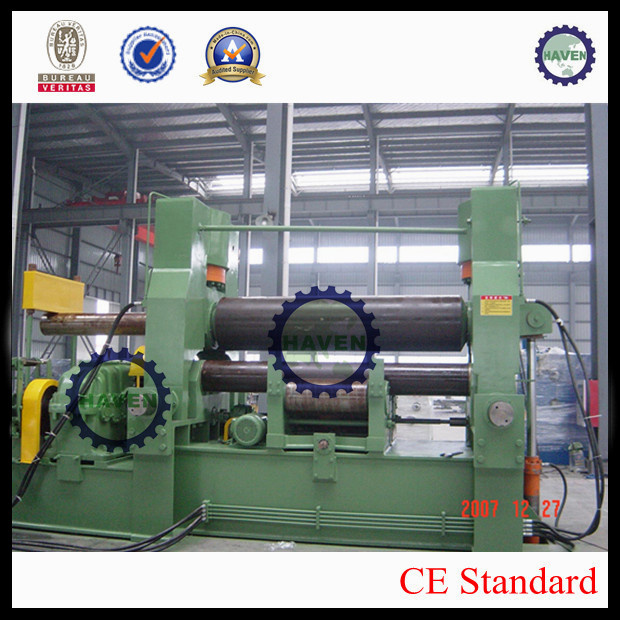

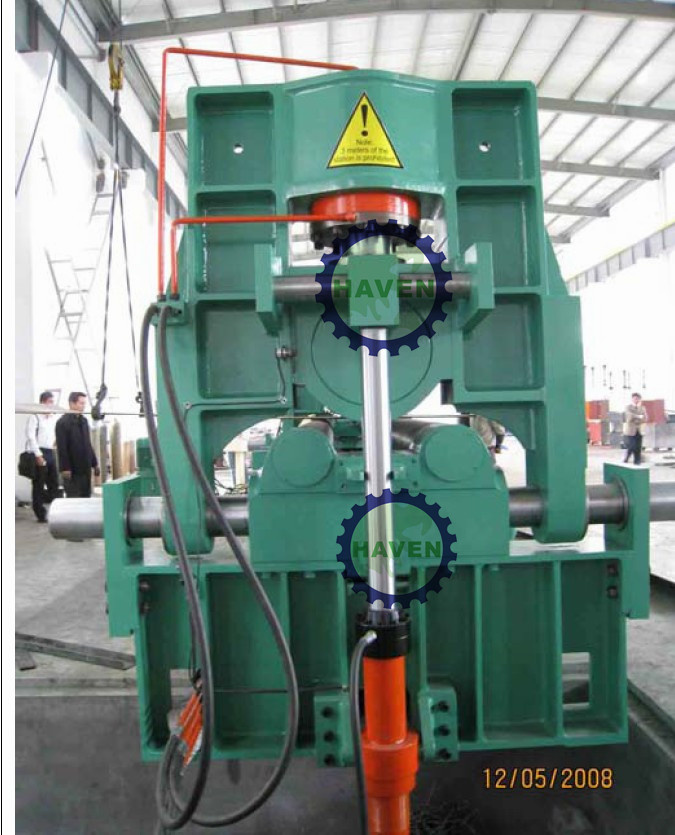

W11s-50X3000 3 Rollers Hydraulic Universal Steel Plate Rolling MachineMain Feature of W11S Series Universal Top Roller Rolling Machine:1. Pre-bending is available by means of direct pressure from top-roller that can be adjusted in four directions - upwards, downwards, right, left. The movement is figured as above sketch map.
2. Cone-bending function is also available by adjustment of two ends of top roller to make top roller inclinable, so that one end is in low position, another is in high position, with the help of cone-bending device, the machine can carry out cone bending.

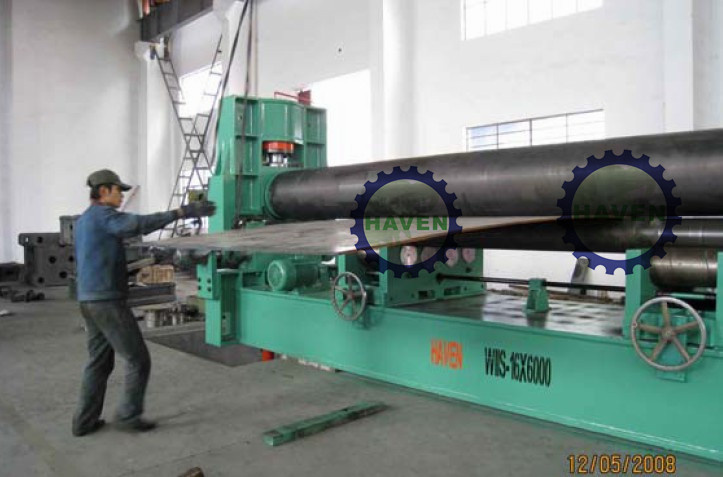

3. Of course, the required cone angle can not be reached in one time of operation, it needs some operations through gradual adjustment of the declining angle of top roller. During the operation, workpiece lies on the bottom rollers, the workers do not have to buttress it, so workers are safe and easy to run the machine.

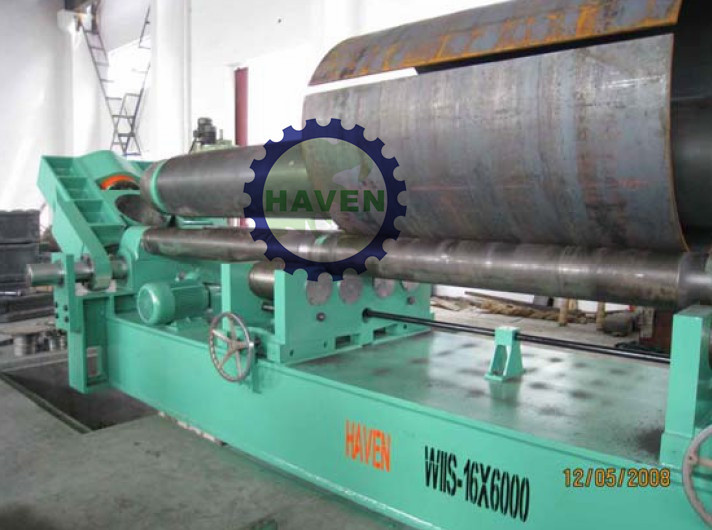

4. The shape of " O" , " U" , " R" Or combined section shape is also available.
5. The machine is completed with economical PLC control functiono achieve high working efficiency.
Main Feature of W11S Series Universal Top Roller Rolling Machine:1. The shape of "O", "U", "R" or combined section shape is also available.
2. PLC is from SIEMENS; Digital Screen is from WEINVIEW, Taiwan; Hydraulic valve, O-Sealings are from UOSHEN, Taiwan
Main specification:| Model | Max. thickness(mm) | Width | Top
roller | Bottom
roller | Distance Of
bottom roller | Motor (KW) |
| Pre-bend | normal | (mm) | (mm) | (mm) | (mm) | Main | Hydraulic |
| W11S-16*2500 | 12 | 16 | 2500 | 330 | 165 | 270 | 11 | 7.5 |
| W11S-16*3200 | 12 | 16 | 3200 | 360 | 180 | 330 | 22 | 7.5 |
| W11S-18*4500 | 16 | 18 | 4500 | 490 | 250 | 400 | 37 | 11 |
| W11S-20*2000 | 16 | 20 | 2000 | 340 | 180 | 330 | 22 | 7.5 |
| W11S-20*2500 | 16 | 20 | 2500 | 360 | 180 | 330 | 22 | 7.5 |
| W11S-20*3200 | 16 | 20 | 3200 | 380 | 220 | 360 | 30 | 11 |
| W11S-25*2000 | 22 | 25 | 2000 | 360 | 220 | 360 | 30 | 11 |
| W11S-25*2500 | 22 | 25 | 2500 | 380 | 240 | 360 | 30 | 11 |
| W11S-25*3200 | 22 | 25 | 3200 | 410 | 260 | 380 | 37 | 11 |
| W11S-30*2500 | 25 | 30 | 2500 | 410 | 260 | 380 | 37 | 11 |
| W11S-30*3200 | 25 | 30 | 3200 | 440 | 260 | 400 | 37 | 11 |
| W11S-35*2000 | 30 | 35 | 2000 | 440 | 260 | 400 | 37 | 15 |
| W11S-35*2500 | 30 | 35 | 2500 | 460 | 275 | 420 | 37 | 15 |
| W11S-35*3200 | 30 | 35 | 3200 | 560 | 290 | 500 | 55 | 22 |
We, Shaanxi Haven Equipment & Trading Co., Ltd, is consisted with 2 factories and 1 international trading company, so we can export our products directly at competitive price. To run our business conveniently, we set up our 2 factories in Nantong Industry Zone which is located in the most developed economic area in China and is nearby the Shanghai Sea Port, that will be much helpful to low our export cost.
With experienced engineers and worker, we produce high quality machines and supply good after sale service. In the past years, we are specialized in import and export of machinery and equipment such as machine tools, vehicles maintenance equipments, motors, bearings, hand tools, power tools and industrial materials. Our business scope also includes import and export of technology, contracting overseas projects and engineer training services.
Our products have been exported to more than 30 countries or regions in the world with high quality, We commit ourselves to cooperating with importers and exporters all over the world. We are looking forward to your enquiries and collaboration. Our technicians will assure you of appropriate equipment with reasonable prices and best pre-sale and after-sale services.
Our Business Scope Include: Turning Machines (Lathe), Drilling Machines, Drilling And Milling Machines, Boring Machines, Milling Machines, Machining Centers, Grinding Machines, Tool Grinding Machines, Gear Cutting And Finishing Machines, Planning Machines, Shaping Machines, Slotting Machines, Broaching Machines, Sawing Machines, Cut-Off Machines, Screwing And Threading Machines, Honing Machine, Polishing Machines, Shearring Machines, Press Brakes, Bending Machine, Punching Machine, Iron Worker, Presses, Rolling Machine, Notching Machine, Engraving Machines, Electric Discharging Machine (EDM), etc.
Our target is: High quality, efficient service, reliable honesty.
