Keel Steel Roll Forming Machine (Double Row)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Blue and Yellow |
Forging Forming Method: |
Roll Forming |
Product Description

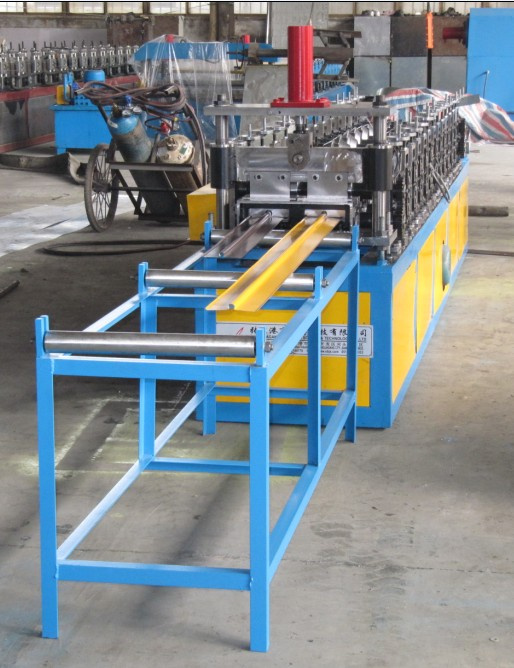

Steel keel roll forming machine
1. Brief introduction:
A. Simple structure and beautiful outlook;
B. Easy to setting and operation
C. Little noise and high working efficiency.
2. Main technology parameter:
1. Size of sheet: Depend on client request
2. Working speed: 12m---15m/min(not including cutting time)
3. Roll station: 15 stations
4. Material of roller: 45# forge steel, polished and coated with chrome
5. Material of main: Shaft45forge steel, shaft dia is 85mm
6. Main power: 22kw (2*11kw)
7. Hydraulic station power: 5.5Kw
8. Hydraulic pressure: 20 Mpa
9. Control system: PLC Panasonic
10. Size of machine1: 7000x8000x1000mm
11. Material of the cutting sword: Cr12MOV
12. Pressing thickness: 0.81.5mm
13. Tolerance of length: ± 2 mm
14. Driving mode: 1 inch single line chain item
15. Pressing material: Q195 Q235
Zhangjiagang City Saibo Science & Technology Co, . Ltd is a professional manufacturer specializing in the developing and exporting of roll forming machine and welding pipe line, such as Metal roof & wall panels machine, C&Z purlin machine, drywall stud-track forming machines, Metal deck machines, K-span and columniation curves forming machines, and guard rail forming machines, downspout roll forming machine, weld pipe machine line and so on.
Our company, which is located in Zhangjiagang city, is close to Zhangjiagang Economy Development Area and Shanghai City with superior geographic and convenient transportation.
Since 90s, in 20 centuries, the market for steel structure building industry boomed but with the development of steel structure industry, the shorter period for construction and beautiful external appearance, as well reasonable price was occupied in the market of building industry.
Zhangjiagang Saibo Science & Technology Co, . Ltd engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machine for our regular customer. In particular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality, and installation. Our goal is" future by heartiness, faith leads to the world"
Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
