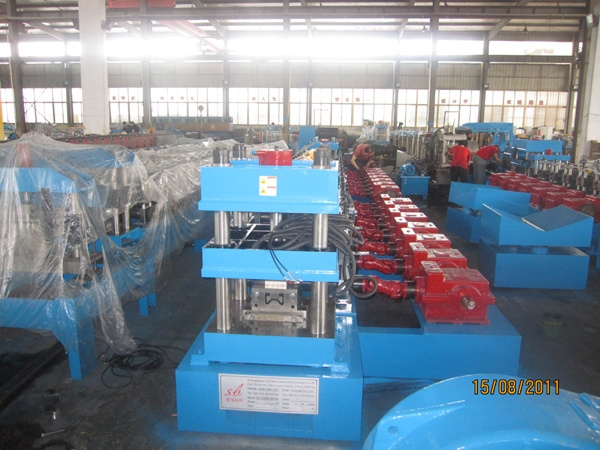

M Shaped Roll Forming Machine (YX55-100)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
YX55-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue and Yellow |
Product Description
Details of each composition
A: Roll forming main machine
1: Coil width: 247mm
2: Working speed: 12m/min
3: Roll station: 15 stations
4: Material of roller: Gcr15 forge steel, polished and coated with hard chrome HRC58-60
5: Material of main shaft: 45forge steel diameter roller: 100mm
6: Main power: 37kw
7: Forming thickness: 3mm_4.5mm galvanized steel or metal sheet
8: Transmission: By gear (surface of the gear HRC 50-55)
9: Dimension of the body machine: : 11000× 1000× 1200mm
10: Weight of machine: About 10000kg
B: Cutting system
(1)Machine adopt hydraulic after cutting.
(2)Cutting after forming: Cut the sheet after roll forming to required length
(3)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(4)Material of blade: CR12with heat treatment
(5)Length measuring: Automatic length measuring
(6)Tolerance of length: 3m +/- 1.5mm
C: Punching system
1: Base on customer profile this machine need one punching unit
2: Machine will adopt hydraulic pre-punching
3: Punching mould material: Cr12
4: Punching pressure: 20Mpa
5: Punching distance is controlled by PLC control system
D: PLC control system Panasonic
(1)Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
(2)Automatic length measurement:
(3)Automatic quantity measurement
(4)Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
(5)Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7)Unit of length: Millimeter (switched on the control panel)
E: Hydraulic station
1: Hydraulic station power: 5.5kw
2: Hydraulic pressure: 20Mpa
Zhangjiagang City Saibo Science & Technology Co, . Ltd is a professional manufacturer specializing in the developing and exporting of roll forming machine and welding pipe line, such as Metal roof & wall panels machine, C&Z purlin machine, drywall stud-track forming machines, Metal deck machines, K-span and columniation curves forming machines, and guard rail forming machines, downspout roll forming machine, weld pipe machine line and so on.
Our company, which is located in Zhangjiagang city, is close to Zhangjiagang Economy Development Area and Shanghai City with superior geographic and convenient transportation.
Since 90s, in 20 centuries, the market for steel structure building industry boomed but with the development of steel structure industry, the shorter period for construction and beautiful external appearance, as well reasonable price was occupied in the market of building industry.
Zhangjiagang Saibo Science & Technology Co, . Ltd engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machine for our regular customer. In particular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality, and installation. Our goal is" future by heartiness, faith leads to the world"
Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
