| Prod Model: |
1000/1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Metal Roof Tile Panel Profile Making Machine |
| Applied Slad Thicknedd: |
0.7-0.8mm |
| Charge In Width: |
1000mm-1200mm |
| .Productivity: |
0-15m/Min |
| Rollers: |
13----18 Rows |
| Diameter Of The Roller: |
75mm |
| Dimensions: Major Structure: |
7.8m×1.8m ×1.4m |
| Weight: |
4.3t |
| Power: |
4kw+3kw |
| Forging Forming Method: |
Mold Forging |
Product Description

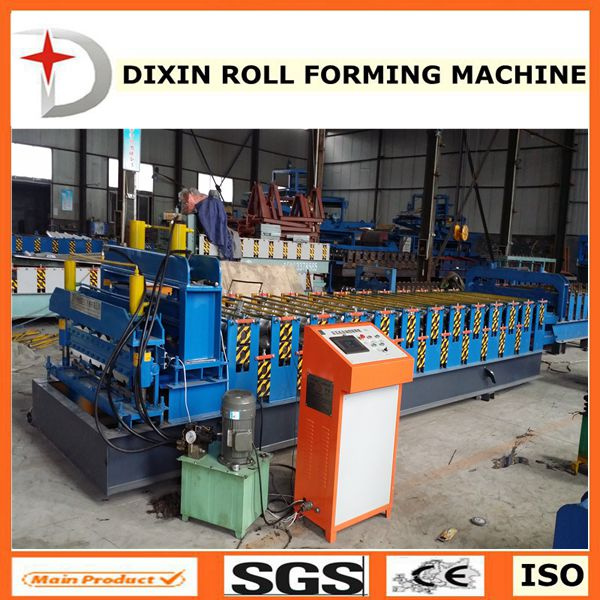

metal roof tile panel profile making machine
Technique parameter of the processing line
1.suitable to process: colored armor plate with the bending intensity of 235mpa
2.Thickness of the plate : 0.3-0.8mm
3.Width of the plate: 1000mm/1250mm
4.Productivity :0-15m/min
5.Rollers:14----18 rows
6.Diameter of the roller: 70mm
7.Dimensions: major structure: 7.8m×1.8m ×1.4m
8.Weight:4.3t
9.Power:4kw+3kw
10.Effective area for use :1090mm
| No. | Hot Sale European Style Roll Forming Machine |
| 1 | Suitable material | color steel sheet, galvanized steel sheet, aluminium sheet |
| 2 | Material width | 1250mm or as your required |
| 3 | Material thickness | 0.3-2.0 or as your required |
| 4 | Working speed | 8-12m/min, can be 20m/min |
| 5 | Main motor power | 11kw with cycloidal with reducer |
| 6 | Hydraulic pump power | 5.5kw |
| 7 | Electrical control system | PLC control system with inverter |
| 8 | Shaft diameter | 75mm |
| 9 | Roller station | 23rows, depend on your panel profile drawing |
| 10 | Roller | high grade 45# steel, hard chrome plating |
| 11 | Working time | 24 hours |
| 12 | workers | 1-2 only |
| 13 | Cutting head material | Cr 12 mould steel with quenched treatment |
| 14 | Voltage | 380V 3Phase 50Hz or as your required |
Process flow: loading---molding----cutting----off-discharging
Company Introduce:
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.
Warmly welcome to China to visit our factory and select the machines you need. Our address,Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China
Our Services
First,we can produce the special machine,send your drawing to us,we can design for you.
Second,if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
Third, we provide a one year warranty and lifelong technical support,we can send our technicians to you to give you on-site training.
Four,engineers available to service machinery overseas.
Five, if you come to visit our factory,we can book the room for you,car pick up to send.
We manufacture and test our machine strictly to make sure every customer get it satisfied.
Your panel profile drawing is welcomed and acceptable!
Any question,call me +86 18231737651
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping and sandwich panel forming machine.
We exports to most of the world. USA, UK, Africa, Russia, Indian and many other countries.
The davantage of our factoy is that
1. Many panel profile drawing machine designs available
2. Good quality machine
3. Good communication and good after sale service
In the next five years, we provide much better quality machine at reasonable price but competitive than Other supplier. So we can earn more market in the world.
Pls contact for more business.
