Product Description
Punching Machine,CNC Punching Machine, Power Press,Punch Press
Performances & Characteristics
1. Standard fuselage with high strength and high rigidity;
2. With good quality of wearing lining which realizes an easy operation and has long lifespan;
3. Fully functioning FAGOR numerical system imported from Spain;
4. AC servo motor with stable performances to ensure high speed, stability and precision;
5. Precise ball screw (from ABBA in Taiwan);
6. Precise linear guiderail (from HIWIN in Taiwan);
7. Material supporting bench with good quality brush to avoid the work surface from being scratched;
8. Its cost performance is most popular among users;
9. Equipped with automatic programming software.
|

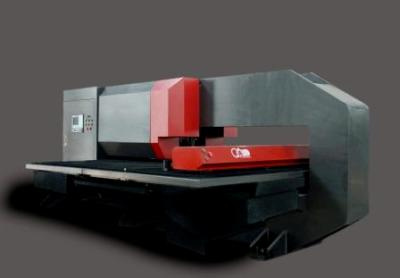

PF9025 SERIES CNC TURRET PUNCHING MACHINE |
|
SPECIFICATION |
PF9025-32 |
PF9025-24 |
PF9025-20 |
PF9025-16 |
PF9025-12 |
|
Nominal Pressure |
KN |
250 |
250 |
250 |
250 |
250 |
|
Max processing Plate Size |
MM |
1250x2500 |
1250x2500 |
1250x2500 |
1250x2500 |
1250x2500 |
|
Max Processing Plate Thickness |
MM |
6 |
6 |
6 |
6 |
6 |
|
Max Processing Plate Weight |
KG |
150 |
150 |
150 |
150 |
150 |
|
The Punch and The Max. Punch Hit |
Hydraulic |
Imports high-speed hydraulic |
|
500 |
500 |
500 |
500 |
500 |
|
High-speed hydraulic |
HPM |
400 |
400 |
400 |
400 |
400 |
|
Domestic hydraulic |
HPM |
120 |
120 |
120 |
120 |
120 |
|
Mechanistic |
Pneumatic Friction Friction Clutch |
HPM |
250 |
250 |
250 |
250 |
250 |
|
Rigid Clutch |
HPM |
150 |
150 |
150 |
150 |
150 |
|
Max Punching Diameter of One time |
MM |
88.9 |
88.9 |
88.9 |
88.9 |
88.9 |
|
NO. of station |
NO. |
32 |
24 |
20 |
16 |
12 |
|
The detailed station’s distribution |
16A 12B 2C 2D |
12A 8B 2C 2D |
10A 7B 2C 1D |
8A 5B 2C 1D |
5A 4B 2C 1D |
|
Positioning accuracy |
MM |
±0.10 |
±0.10 |
±0.10 |
±0.10 |
±0.10 |
|
Machine bed construction |
|
O-Type |
O-Type |
O-Type |
O-Type |
O-Type(or C-Type) |
|
Controlling Axis |
No. |
4 |
3 |
3 |
3 |
3 |
|
Mold Construction |
|
AMADA Standard Form |
AMADA Standard Form |
AMADA Standard Form |
AMADA Standard Form |
AMADA Standard Form |
|
Air Pressure |
Mpa |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Total Power |
KW |
14 |
12 |
12 |
12 |
12 |
|
Machine Dimension (FB/LR/H) |
Mm |
5000x5000x2200 |
5000x3500x2200 |
5000x3500x2200 |
5000x3500x2200 |
5000x3500x2200 |
|
Machine Weight |
T |
14 |
13 |
13 |
12 |
12 |
Beijing Huaduan Machine Tool Manufacturing Co., Ltd. is located in the east of No. 103 Jing-Jin Road, Sanhe City, Hebei Province. Our geographical position is superior and transportation is convenient.
Our company is a professional manufacturer of CNC bending machines, CNC cutting machines, and CNC punching, polishing-edge machines, punch machine hydraulic press machine and so on. Our company covers an area of 18, 000 square meters and owns the assets of 60 million Yuan. We have 260 existing staff members and 35 engineering and technical personnel.
In recent years, Beijing Huaduan Machine Tool Manufacturing Co., Ltd., with strong technical force and rich experience, constantly improves processing and innovation in the emerging tool industry.
Our company has completely passed ISO9001: 2000 quality management system certification. Our products sell well throughout the country and we have self-supporting authority. Our partial products have been exported to Southeast Asia, South America, Africa, Eastern Europe, and other countries and regions, and are deeply trusted by domestic and foreign users.
Our company insists on "quality first, customer supreme" and sincerely welcomes customers from all over the world to negotiate and cooperate.
