Capacity:
100kn
Pressure:
31.5MPa
Travel:
400mm
Weight:
4800kg
Forging Forming Method:
Mold Forging
Power Source:
Hydraulic Pressure
Advantage:
Use Widely
Product Description

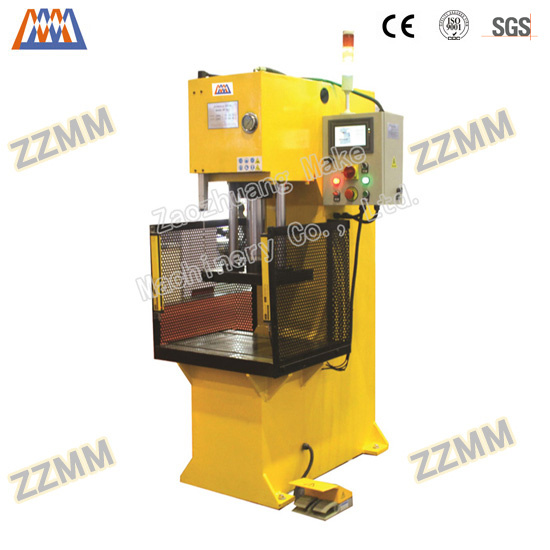

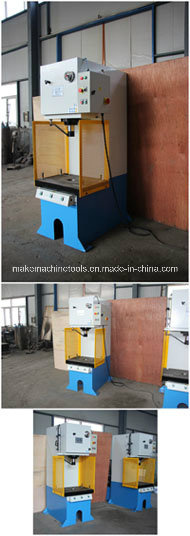

HP-C series open side "C" type hydraulic press, with trihedral open worktable, suitable for assembling and dismantling complex structure and large volume parts. features:
strong hydraulic cylinder and two circular guides ensure uniform and precise feeding during press operation ideal for die pressing, blanking, bending and much more semi-automatic with lever and micro-switch stroke length with quick adaption to next tool ram plate and work table with T-slots for tool clamping firmly bolted work table advance and reverse jog operation for easy machine set-up stroke limit adjustable by micro-switch optimum table height 2-stage hydraulic pump Technical specification
model
units
HP-20C
HP-30C
HP-50C
HP-63C
HP-100C
capacity
kn
200
300
500
630
1000
pressure
Mpa
25
25
31.5
31.5
31.5
travel
mm
300
300
300
300
400
table size
mm
400*300
400*300
400*600
400*700
500*800
dimension
mm
800*600*1500
800*600*1500
800*1200*1950
800*1200*1950
1000*1600*2100
weight
kg
860
1160
2800
3200
4800
