Product Description
Bogie
we can supply complete wagon bogie for you ,according TB standard.
BOGIE
A Bogie as well as called Truck American is a chassis or framework carrying wheels, attached to a vehicle, thus serving as a modular subassembly of wheels and axles.
n Bogies serve a number of purposes:
l Support of the rail vehicle body.
l Stability on both straight and curved track.
l Ensuring ride comfort by absorbing vibration and minimizing the impact of centrifugal forces when the train runs on curves at high speed.
l Minimizing generation of track irregularities and rail abrasion
n Key components of a bogie include:
l The bogie frame: This can be of inside frame type where the main frame and bearings are between the wheels, or (more commonly) of outside frame type where the main frame and bearings are outside the wheels.
l Suspension to absorb shocks between the bogie frame and the rail vehicle body: Common types are coil springs, or rubber airbags.
l At least one wheelset, composed of an axle with bearings and a wheel at each end
l Axle box suspensions absorb shocks between the axle bearings and the bogie frame. The axle box suspension usually consists of a spring between the bogie frame and axle bearings to permit up-and-down movement, and sliders to prevent lateral movement. A more modern design uses solid rubber springs.
l Brake equipment: Two main types are used: brake shoes that are pressed against the tread of the wheel, and disc brakes and pads.
l In powered vehicles, some form of transmission, usually electrically powered traction motors or a hydraulically powered torque converter

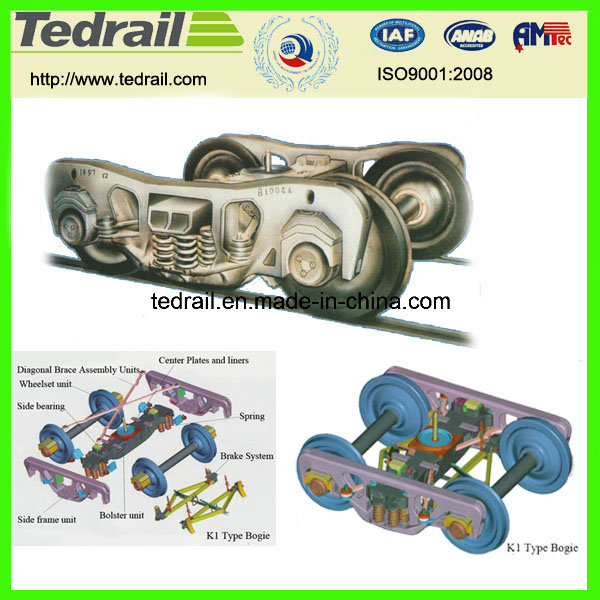

Summary: This bogie is suitable for various freight cars with standard gauge, 21t axle load and the maximum operating speed of 120km/h. It has such features as three-piece casting steel bogie structure, There is Rubber shear pad added between the
adapter and guide frame of side frame, which accomplish the wheelset fixed elastically. The bogie is comprised of wheelset and bearing, bolster assembly, side frame assembly, elastic suspension device and damping device, constant contact side bearing and brake rigging, center plate, diagonal brace assembly etc.
| RTSTD K1 |
| Axle Load | Tare Weight | Max Speed | Bogie Rigid Wheel Base | Diameter of Bogie Center Plate | Side Bearing Center
Distance | Height Center Plate Rail
Surface |
| 21T | 4.2T | 120km/h | 1750mm | 355mm | 1520mm | 775mm |
Tedrail can supply most of railway products, such as Bogie parts, Wagon parts, Coach parts, Locomotive parts based on customers' requirements. We have a professional technical and quality assurance team, well understanding of international railway products standard or specification, expert in design, manufacture, and inspection for railway products. With our experienced and educated business team, Cooperated with Chinese railway industrial university, Tedrail has got most valuable technical support and knowledge base.
Tedrail is focused on the complete solution of railway industry, and interested in sharing experience and cooperation with all parties in the world.
