| Prod Model: |
JCX980 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Roof |
| Tile Type: |
Steel/ Aluminium |
| Production: |
4m /Minute |
| Dimension(L*W*H): |
30m*1.8m*2.5m |
| Power(W): |
13kw |
Product Description
Structure and reasonable design, they won praise from same steel structure field because of the innovation constantly.

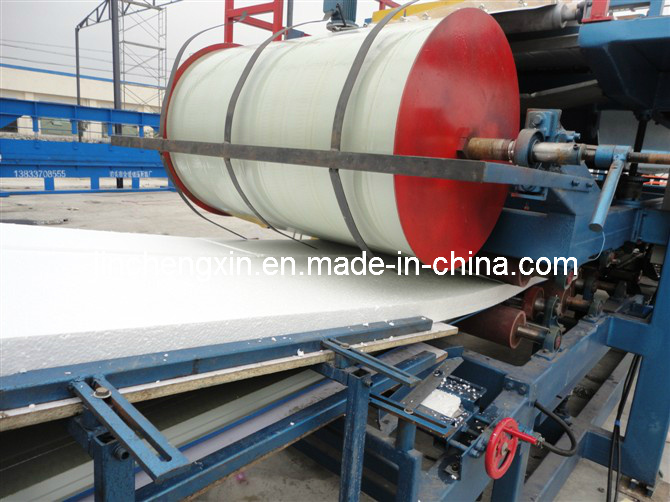

The sandwich panel production line can produce EPS sandwich panel and rock wool sandwich panel
Variety of roofing panel shapes
Sandwich panel production line:
1. General description:
This HIM-S-6 sandwich panel lamination line is designed to produce EPS and heat-insulation sandwich panel; Variety of roofing panel shapes with EPS core.
2. Material
2.1 Steel sheets
2.1. 1 facer sheets:
Color steel sheets: It is 0.2-0.6mm in thickness and 1250 mm or 1000 mm in width.
Steel coil inner diameter: 500mm, 600mm. For other specification, need to be equipped with coil clamp.
Steel coil weight: 3mt 5mt. Epoxy galvanized layer; Surface coating wont fall off after bending.
2.1.2 blanking plate:
Thickness: 0.2 0.6mm, width shows as following chart: (± 1mm)
Steel coil: Diameter 500 600mm, weight of coil is maximum 1.2 MT.
2.2 Core material
2.2.1 EPS material
Density is16kg/m3, tolerance of straightness is ≤ 1 mm/m and radian is ≤ 3mm/m.
Width: 1150± 1mm (for joint sandwich panel)
1200± 1mm (for H shape sandwich panel, roofing panel)
Unit length 5m, level off surface, tolerance is 1.5mm/m.
Material should be self extinguish, oxy index is 30.
Other standard of EPS panel should meet CB10801.
2.2. 2 Mineral wool material:
Strip length 60mm, Vertical Arrange,
For glass wool, density is 64kg/m3,
For rock Wool, the density is 100kg/m3.
Width of insulation panel: (± 1mm
Other standard refers to EPS.
2.3 Glue
Cohesive strength of PU glue 10n/cm2
|
Main moter power |
32KW |
|
out line dimension of machine |
33m*2.5m*2.5m |
|
Total weight |
14T |
|
Processing speed |
0-5m/min |
|
the thickness of upper steell plate |
0.3-0.8mm |
|
the feeding width of upper steel plate |
1000/1200 |
|
the thickness of lower steel plate |
0.3-0.8mm |
|
the feeding width of lower steel plate |
1000/1200 |
|
material |
EPS/rock wool |
|
the thickness |
50-250mm |
|
the width of stocket board |
950/1150mm |
|
the width of H board |
1000/1200mm |
|
|
|
Terms: |
|
1. Delivery: in stock |
|
2. Package:Exporte Standard package for container |
|
3. Payment:TT(30% by TT in advance ,70% by TT after inspect the machine we send you ) |
|
4. Validity: good for 30days |
