Single-Phase Watt-Hour Energy Meter (DD862 type) Machanical Meter
| Price: |
US $ 13-15/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DD862 Type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy: |
Class 2 |
| Rated Voltage(V): |
220~240V |
| Rated Current(a): |
5(20),5(30),10(40),15(60),20(80),30(100) |
| Overload Capacity: |
4~6ib |
| Starting Current: |
0.5%Ib |
| Insulation Performance: |
AC Voltage 2kv Fir 1 Min Impulse Voltage 6kv |
| Type: |
Energy Meter |
| Display: |
Digital |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Installation: |
General Installation Meter |
| Usage: |
Standard Electric Energy Meter |
| Measured Signal: |
Continuous Wave |
| Power Meter Connection: |
Terminal |
| Certification: |
IEC521 |
Product Description
Product Brief Introduction

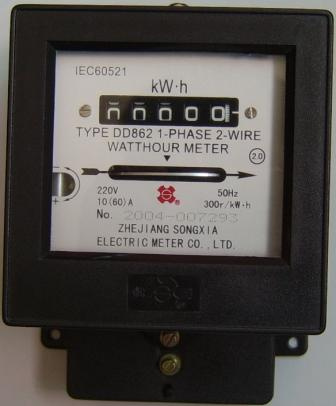

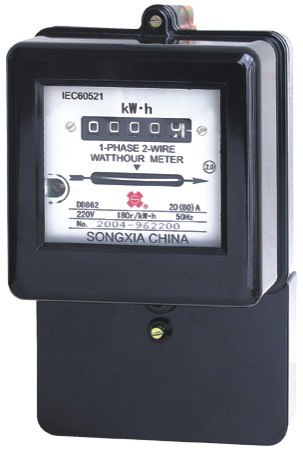

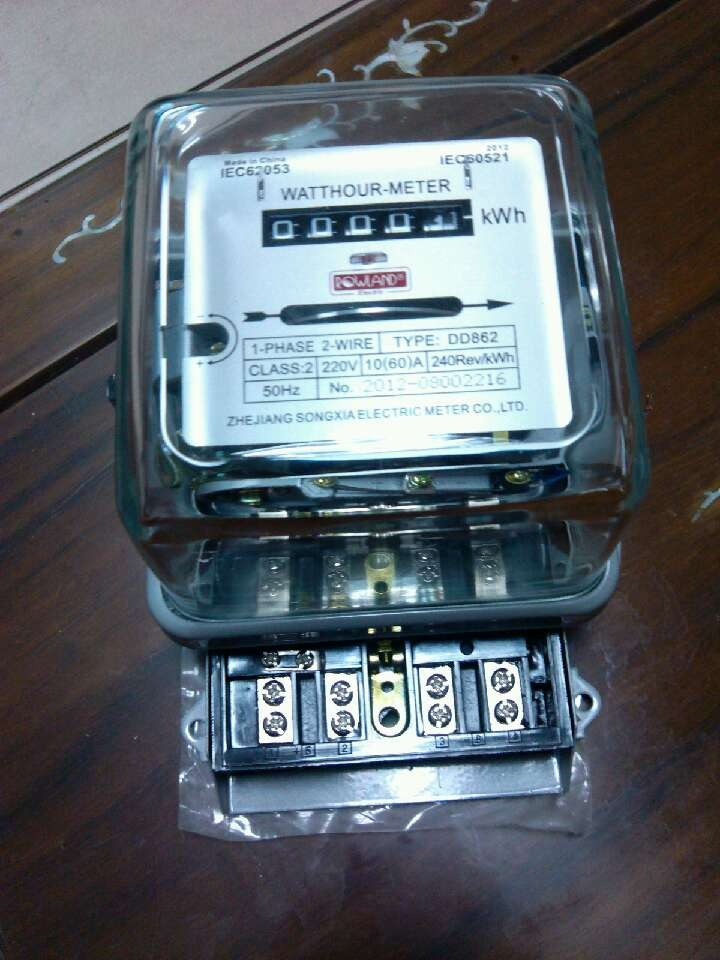

The DD862 type single-phase watt-hour meter is a kind of induction type
Meter, which is applicable to measure the rated frequency 50Hz and power loss
In electrified wire netting. The meter has novel design, rational structure and features of high overload, low power loss and long life etc. All technical targets are completely conformed to the stipulated requirement of National Standard GB/T15283-94 Class 0.5, 1 and 2 AC Active Watt-hour Meter and Interna-tional Standard IEC60521.
Function and Features
* Sub-closed electromagnetic core;
* The die-casting frame is made of alloy aluminum, assure magnetism stable
And reliable;
* Meter bearing has three kinds, may select dual jewel, magnetic thrust or Magnetic float;
* May select 5+1 digits or 4+1 digits register;
* May select 5 kinds of cases: Bakelite, PC, ABS plastic, glass and Aluminum
