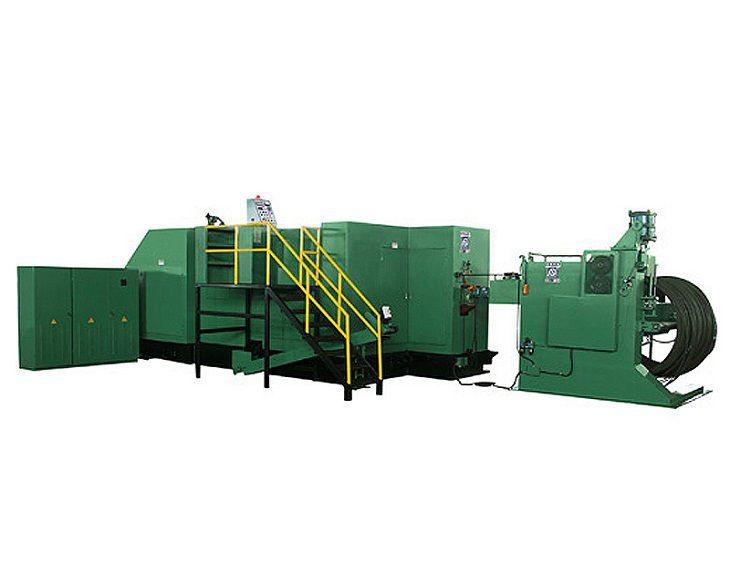

Srh Series Four Stations Automatic Cold Bolts Making Machine

Name: Srh Series Four Stations Automatic Cold Bolts Making Machine
Brand: china-castingforging.com
SKU: 686033302
Availability: InStock
Rating: 4.6 (107 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

HARBIN RAINBOW TECHNOLOGY CO., LTD.

Showroom Product Company Profile

Prod Model:	SRH Series Four Stations
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Forging Forming Method:	Mold Forging

Product Description

Salient Features:

1. The air clutch brake system has been designed to actuate with low current and as "inching", "single stroke" and "continuous running". Except "inching", the machine will always stop at the backward position of the main slider while operating in largest space.

2. Two sorts of transfers system for customer to choose: swing type (general equipped) and universal type (optional), equipped with pneumatic gripper, it can simplify the demand of operation, and is more stable when the machine runs at high speed.

3. Main motor is equipped with speed-adjust transducer, PLC control system, computer automatic man-machine interface system(Optional), these equipment make lots of convenience for customer to adjust the dimension of the non-standard products.

4. Feeding wheel and claw system are both drived by cylinder, the claw can stretch automatically when it goes back in order to reduce abrasion and noise. Feeding material and stop feeding material are controlled by two claws, the feeding material system is equipped with device for avoiding material draw back.

5. Perfect inspection system: short material inspecting and eliminating, inspection of the low location of oil pressure and air pressure, transfer system floating inspection system, overload, and lightload stop system to protect the lathe and dies and prolong the service life of them.

6. When the customer prepare to adjust the side cutting screw, they only need to adjust side cam's station position, then they can achieve side cutting purpose. When the workpieces need not side cutting, customer can reset it to achieve the change from side cutting to former station.

7. High strengthened-material lathe bed, lengthened main and subsidiary slider structure and "pedrailtype" slider which is adopted domestically for the first time realize "zero space" assembling which assures the precision of the main slider movement and lengthens their service life of dies.

8. The main parts of all type machines have adopted strict casting procedure and annealing disposal to assure its steel hardness and precision.

9. Circle cutting die station assures the sheared material shouter than billet diameter which also can achieve accurate right angle cutting.

10. Auto sizing material stopper can adjust the precision of material size in the state of machine running.

11. P.K.O synchronized knock out system makes the choice of molding technics flexible.

12. Transfer finger moving and cutting cams are calculated via professional computer software to make machine stable in state of high speed forging.

SPECIFICATION MODEL			SRH-64S	SRH-64L	SRH-84S	SRH-84L	SRH-104S	SRH-104L	SRH-134L
FORGING STATION			4
PRODUCT	SIZE		1/4( M6 )	1/4( M6 )	5/16( M8 )	5/16( M8 )	3/8( M10 )	3/8( M10 )	1/2( M12 )
	MAX.L(mm)		60	75	75	90	100	120	150
	MIN.L(mm)	HEX	10	10	16	14	16	15	40
	MIN.L(mm)	SOCKET	10	10	16	14	16	15	40
CUT OFF DIA.MAX(mm)			8	8	10	10	12	12	15
CUT OFF LENGTH.MAX(mm)			80	95	110	125	140	140	185
KICK OUT LENGTH.MAX(mm)			65	80	90	95	120	130	180
P.K.O LENGTH.MAX(mm)			12	12	20	19	35	20	30
CUT OFF QUILL( DXL )(mm)			30×45	30×45	35×56	35×50	40×66	45×59	46×80
MAIN DIE HOLE( DXL )(mm)			50×85	50×110	60×105	60×120	80×135	75×135	93×190
DIES PITCH(mm)			60	60	87	80	93	92	114
PUNCH HOLE( DXL )(mm)			32×60	40×90	45×110	45×115	50×111	53×115	60×170
RAM STROKE(mm)			120	132	150	160	160	190	270
FORGING POWER(ton)			30	40	65	60	85	80	120
MAX OUTPUT( pcs /minute)			280	250	180	180	150	160	125
MAIN MOTOR(hp)			15	15	20	22	30	30	50
APPROX.WT(ton)			7.5	10	11	12	17.5	18	28

SPECIFICATION MODEL			SRH-134S	SRH-164S	SRH-164L	SRH-204S	SRH-204L	SRH-254S	SRH-254L
FORGING STATION			4
PRODUCT	SIZE		1/2 ( M12 )	5/8( M16 )	5/8( M16 )	3/4( M20 )	3/4 ( M20 )	1( M24 )	1( M24 )
	MAX.L(mm)		125	150	200	200	250	150	250
	MIN.L(mm)	HEX	20	25	50	40	60	40	60
	MIN.L(mm)	SOCKET	20	25	50	40	60	50	60
CUT OFF DIA.MAX(mm)			15	18	18	23	23	29	29
CUT OFF LENGTH.MAX(mm)			165	200	270	270	320	220	320
KICK OUT LENGTH.MAX(mm)			145	175	230	240	285	185	290
P.K.O LENGTH.MAX(mm)			42	45	36	35	60	30	60
CUT OFF QUILL( DXL )(mm)			46×80	60×100	60×120	75×120	75×120	90×140	90×140
MAIN DIE HOLE( DXL )(mm)			95×165	100×195	100×240	125×240	125×294	160×210	160×294
DIES PITCH(mm)			114	126	126	138	138	174	174
PUNCH HOLE( DXL )(mm)			60×120	75×165	75×200	90×197	90×232	105×180	105×232
RAM STROKE(mm)			240	280	360	360	430	300	440
FORGING POWER(ton)			120	175	200	220	285	360	320
MAX OUTPUT( pcs /minute)			150	100	100	80	70	80	60
MAIN MOTOR(hp)			50	75	75	100	125	125	125
APPROX.WT(ton)			26	49	51	64	76	86	100
