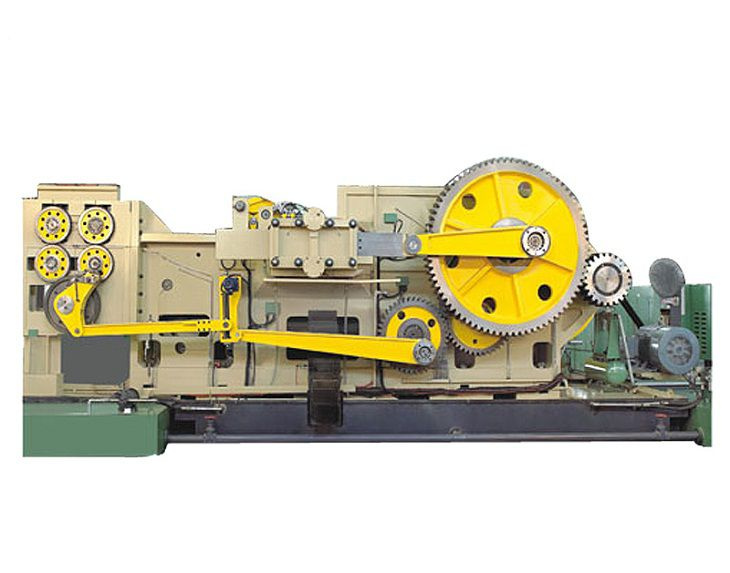

Srh Series Six Stations Automatic Cold Bolt Maker

Name: Srh Series Six Stations Automatic Cold Bolt Maker
Brand: china-castingforging.com
SKU: 686033452
Availability: InStock
Rating: 4.8 (100 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

HARBIN RAINBOW TECHNOLOGY CO., LTD.

Showroom Product Company Profile

Prod Model:	SRH Series Six Station
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Forging Forming Method:	Mold Forging

Product Description

Salient Features:

1. The air clutch brake system has been designed to actuate with low current and as "inching", "single stroke" and "continuous running". Except "inching", the machine will always stop at the backward position of the main slider while operating in largest space.

2. Two sorts of transfers system for customer to choose: swing type (general equipped) and universal type (optional), equipped with pneumatic gripper, it can simplify the demand of operation, and is more stable when the machine runs at high speed.

3. Main motor is equipped with speed-adjust transducer, PLC control system, computer automatic man-machine interface system(Optional), these equipment make lots of convenience for customer to adjust the dimension of the non-standard products.

4. Feeding wheel and claw system are both drived by cylinder, the claw can stretch automatically when it goes back in order to reduce abrasion and noise. Feeding material and stop feeding material are controlled by two claws, the feeding material system is equipped with device for avoiding material draw back.

5. Perfect inspection system: short material inspecting and eliminating, inspection of the low location of oil pressure and air pressure, transfer system floating inspection system, overload, and lightload stop system to protect the lathe and dies and prolong the service life of them.

6. When the customer prepare to adjust the side cutting screw, they only need to adjust side cam's station position, then they can achieve side cutting purpose. When the workpieces need not side cutting, customer can reset it to achieve the change from side cutting to former station.

7. High strengthened-material lathe bed, lengthened main and subsidiary slider structure and "pedrailtype" slider which is adopted domestically for the first time realize "zero space" assembling which assures the precision of the main slider movement and lengthens their service life of dies.

8. The main parts of all type machines have adopted strict casting procedure and annealing disposal to assure its steel hardness and precision.

9. Circle cutting die station assures the sheared material shouter than billet diameter which also can achieve accurate right angle cutting.

10. Auto sizing material stopper can adjust the precision of material size in the state of machine running.

11. P.K.O synchronized knock out system makes the choice of molding technics flexible.

12. Transfer finger moving and cutting cams are calculated via professional computer software to make machine stable in state of high speed forging.

SPECIFICATION MODEL	SRH-66S	SRH-86S	SRH-106L	SRH-136S	SRH-256S	SRH-256L	SRH-276L	SRH-306S
FORGING STATION	6
PRODUCT LENGTH MAX(mm)	35	60	150	90	135	135	300	165
CUT OFF DIA.MAX(mm)	12	16	17	22	34	34	38	42
CUT OFF LENGTH.MAX(mm)	45	60	140	70	140	280	400	180
KICK OUT LENGTH.MAX(mm)	45	70	120	100	150	260	340	180
P.K.O LENGTH.MAX(mm)	10	20	30	20	40	50	60	55
MAX CHUCK TURN LENGTH(mm)	20	40	40	50	90	120	140	100
CUT OFF QUILL( DXL )(mm)	40×60	50×80	50×80	70×75	110×155	110×155	110×140	115×140
MAIN DIE HOLE( DXL )(mm)	50×85	75×110	80×150	90×140	155×220	155×280	178×385	195×250
DIES PITCH(mm)	69	87	93	114	174	174	195	210
PUNCH HOLE( DXL )(mm)	40×80	50×90	50×120	65×120	110×220	110×240	120×250	135×280
RAM STROKE(mm)	100	140	200	175	280	400	500	320
FORGING POWER(ton)	65	135	170	220	550	550	800	900
MAX OUTPUT( pcs /minute)	150	130	120	110	60	60	35	50
MAIN MOTOR(hp)	20	40	50	75	150	175	200	300
APPROX.WT(ton)	13	18	27	30	108	128	220	155
