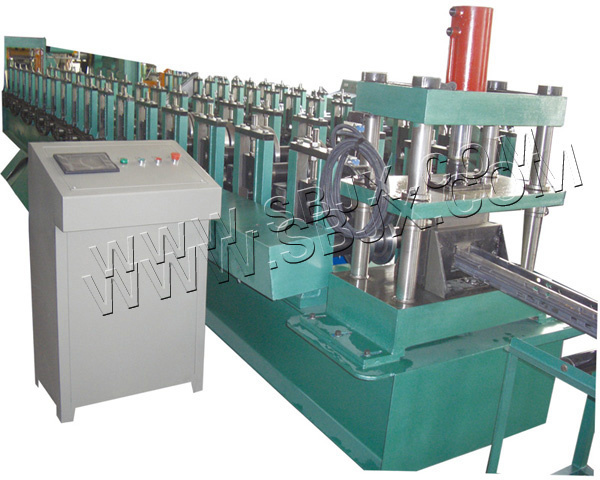

Upright Roll Forming Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
| Prod Model: |
YX50-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Green |
| Forging Forming Method: |
Roll Forming |
Product Description
Main technology parameter:
1: Coil width: 254mm
2: Working speed: 20m/min (not contain punching and cutting)
3: Roll station: 24stations (include 7 stations for leveling sheet)
4: Material of roller: 45#forge steel, polished and coated with chrome
5: Material of main shaft: 45forge steel diameter roller: 76mm
6: Main power: 18.5kw
7: Forming thickness: 1.5mm-3mm
8: Transmission: By Chains
9: Cutting:
(1)Adopt hydraulic cutting
(2)Cutting after forming: Cut the sheet after roll forming to required length
(3)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(4)Material of blade: CR12with heat treatment
(5)Length measuring: Automatic length measuring
(6)Tolerance of length: +/- 1.5mm
Zhangjiagang City Saibo Science & Technology Co, . Ltd is a professional manufacturer specializing in the developing and exporting of roll forming machine and welding pipe line, such as Metal roof & wall panels machine, C&Z purlin machine, drywall stud-track forming machines, Metal deck machines, K-span and columniation curves forming machines, and guard rail forming machines, downspout roll forming machine, weld pipe machine line and so on.
Our company, which is located in Zhangjiagang city, is close to Zhangjiagang Economy Development Area and Shanghai City with superior geographic and convenient transportation.
Since 90s, in 20 centuries, the market for steel structure building industry boomed but with the development of steel structure industry, the shorter period for construction and beautiful external appearance, as well reasonable price was occupied in the market of building industry.
Zhangjiagang Saibo Science & Technology Co, . Ltd engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machine for our regular customer. In particular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality, and installation. Our goal is" future by heartiness, faith leads to the world"
Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
