Wall Angle Roll Forming Machine
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue and Yellow |
| Forging Forming Method: |
Roll Forming |
Product Description

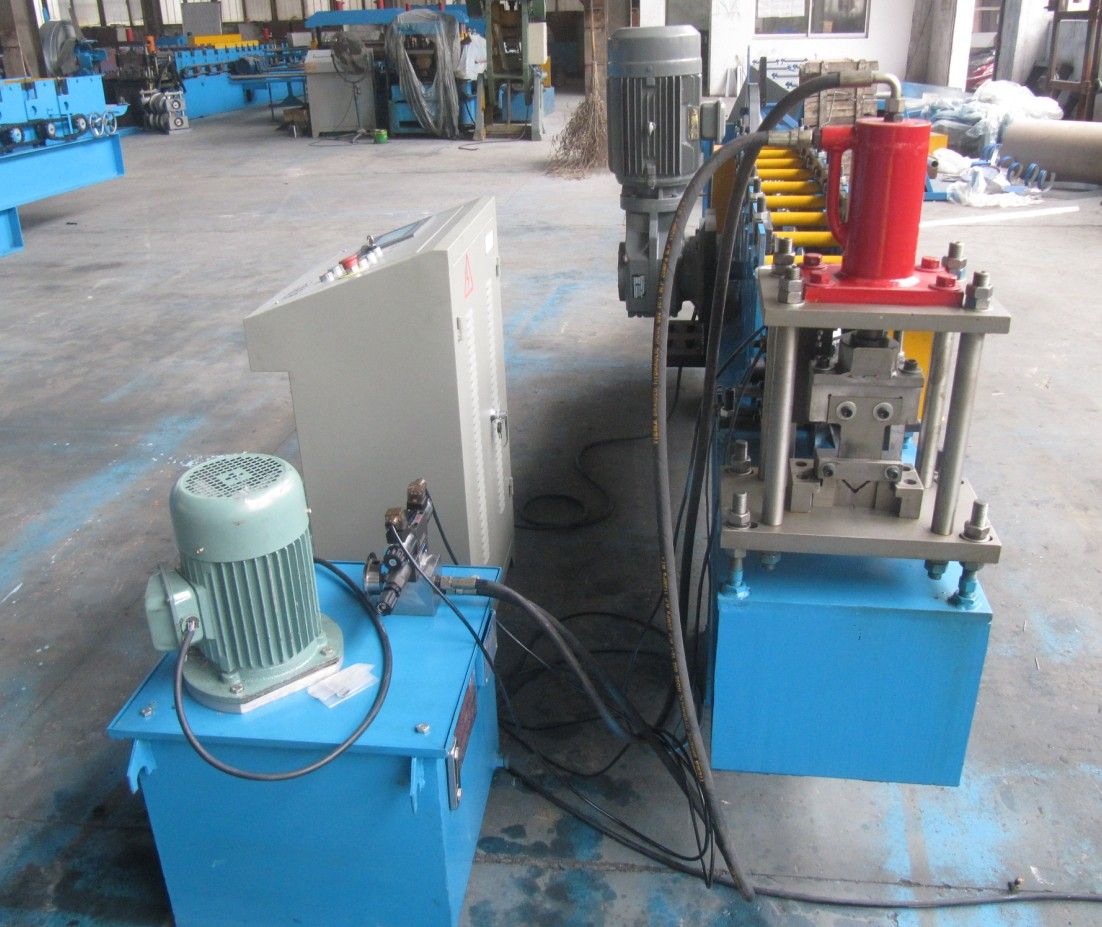

Roll forming machine
1. Brief introduction:
A. Simple structure and beautiful outlook;
B. Easy to setting and operation
C. Little noise and high working efficiency.
2. Main technology parameter:
1: Width of raw material (mm): Depend on profile
2: Working speed: 1 2m-15m/min (not contain cutting time)
3: Roll station: 8stations
4: Material of roller: GCr15steel, coated with chrome
5: Material of main shaft: 45#forge steel 56MM
6: Main motor power: 3kw
7: Hydraulic station power: 3kw
8: Hydraulic pressure: 12Mpa
9: Control system: PLC, Panasonic
10: Size of machine: 4500mmx1000mmx1000mm
11: Cutting material: Cr12MOV
12: Roll Thickness: 0.4-0.8mm
13: The tolerance of length: 0.3--2mm
14: Way of drive: Single row of chain: 1 inch
15: Suitable material: Q195, Q235, G550
