| Prod Model: |
YK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Q235, Cast Steel, Channel Steel, Cast Steel |
| Delivery: |
in Time |
| Certificate: |
Passed ISO9001:2008 |
| Quality Control: |
Go Through Five Checks Before Delivery |
| Warranty: |
One Year Warranty Except Wearing Parts |
| Install,Debag And Training: |
Free Installation Guidance and Lines Design |
| Operation: |
Easy and Simple |
| Maintenance: |
Few Time |
| After Sale Service: |
Praised by Our Users |
| Manufacture Standard: |
Accord with Industrial Standard |
| Object: |
Ore |
| Shaft Number: |
Double |
| Condition: |
New |
| Type: |
Mineral Processing & Screening Equipment |
Product Description
Applicable industries
Chemical industry: Resin, coating, industrial pharmaceutical, paint, such as this.
Metal, metallurgical mining: Aluminum powder, lead powder, copper powder, ore, close powders, electrode powder, manganese dioxide, electrolytic copper powder, electric magnetic materials, polishing powder, refractory, kaolin, lime, aluminum oxide, calcium carbonate, quartz sand, etc.
Pollution treatment: Waste oil, waste water, dyeing wastewater, additives, and carbon characteristics.
Vibrating screen machine work principle
By vibrating motor vibrator vee belt make an eccentric block produce high rotation speed. Operation of an eccentric block generates a lot of the centrifugal force, stimulate screen box produce certain amplitude of circular movement, sieve materials in a sieve surface tilt by screen box to the impulse and produce continuous casting movement, material and sieving meet process makes less than screen hole particles through sieve, thus realize grading.
Vibrating screen machine usage

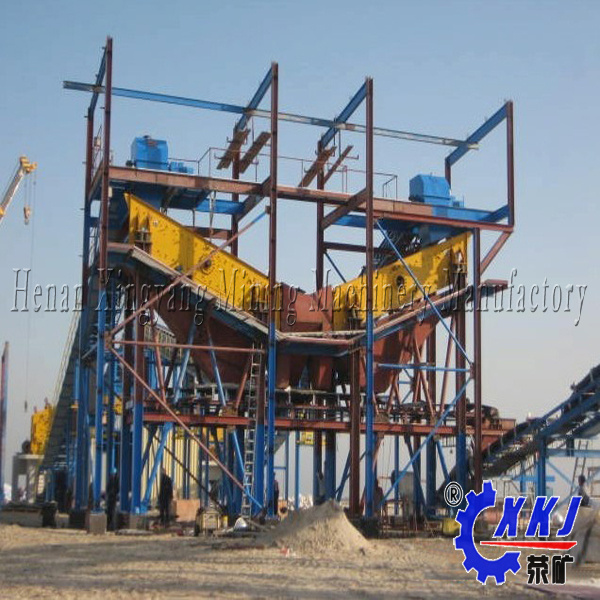

YK type circular sieve trajectory for circle, mainly used in metallurgy ore dressing, coal cleaning, building materials, electric power industries dry material classification of homework. This series of sieve machine adopts the current domestic most advanced ring groove rivet riveting, large clearance bearing grease lubrication vibrators,
Vibrating screen machine feature
With simple structure, durable, low noise, installation, maintenance is convenient wait for a characteristic
Circle vibrating screen by vibration source and sieving body, screen, vibration reduction device and composition, sieve machine lateral plate is made of high qualified steel plate making and become, lateral plate and beams, excitation objects bottom seat using high strength bolts or ring groove rivet connection, reasonable structure, firm is durable
|
Model |
Mesh size
(mm) |
Max feed
size
(mm) |
Capacity (m³/h) |
power
(KW) |
weight
(kg) |
Dimensions
(L*W*H)
(mm) |
|
2YK1225 |
4-50 |
400 |
8-60 |
5.5 |
2500 |
3040×1840×800 |
|
3YK1225 |
4-50 |
400 |
10-70 |
5.5 |
2850 |
3040×1840×1200 |
|
2YK1230 |
4-50 |
400 |
12-78 |
7.5 |
3000 |
3390×1900×800 |
|
3YK1230 |
4-50 |
400 |
13-80 |
7.5 |
3600 |
3537×1900×1200 |
|
2YK1237 |
4-50 |
400 |
15-86 |
7.5 |
3600 |
4090×1900×800 |
|
3YK1237 |
4-50 |
400 |
16-90 |
7.5 |
4200 |
4400×1950×1200 |
|
2YK1535 |
5-50 |
400 |
20-125 |
11 |
4890 |
4552×2250×900 |
|
3YK1535 |
5-50 |
400 |
21-125 |
11 |
5700 |
4552×2250×1600 |
|
2YK1545 |
5-50 |
400 |
22-150 |
15 |
5330 |
5400×2250×1600 |
|
3YK1545 |
5-50 |
400 |
22-150 |
15 |
5800 |
5400×2250×1700 |
|
2YK1548 |
5-50 |
400 |
22.5-162 |
15 |
5980 |
5300×2200×860 |
|
3YK1548 |
5-50 |
400 |
22.5-162 |
15 |
6600 |
5752×2200×1600 |
|
2YK1848 |
5-80 |
400 |
25-206 |
15 |
7080 |
6140×2470×1380 |
|
3YK1848 |
5-80 |
400 |
32-276 |
18.5 |
7600 |
6140×2710×1780 |
|
2YK1854 |
5-80 |
400 |
32-312 |
18.5 |
8150 |
6500×2600×1300 |
|
3YK1854 |
5-80 |
400 |
32-312 |
22 |
8840 |
6960×2600×1630 |
|
2YK2160 |
5-100 |
400 |
50-475 |
30 |
9780 |
7300×2950×2000 |
|
3YK2160 |
5-100 |
400 |
50-475 |
30 |
10800 |
7300×2950×2000 |
|
2YK2460 |
5-100 |
400 |
65-550 |
37 |
13600 |
7450×3230×1500 |
|
3YK2460 |
5-100 |
400 |
70-620 |
37 |
15600 |
7450×3230×1910 |
