| Prod Model: |
MQG/ MQY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Q235, Cast Steel, Channel Steel, Cast Steel |
| Delivery: |
in Time |
| Certificate: |
Passed ISO9001:2008 |
| Quality Control: |
Go Through Five Checks Before Delivery |
| Warranty: |
One Year Warranty Except Wearing Parts |
| Install,Debag And Training: |
Free Installation Guidance and Lines Design |
| Operation: |
Easy and Simple |
| Maintenance: |
Few Time |
| After Sale Service: |
Praised by Our Users |
| Manufacture Standard: |
Accord with Industrial Standard |
| Motor Type: |
AC Motor |
| Condition: |
New |
| Type: |
Ore Grinder |
Product Description
Introduction:

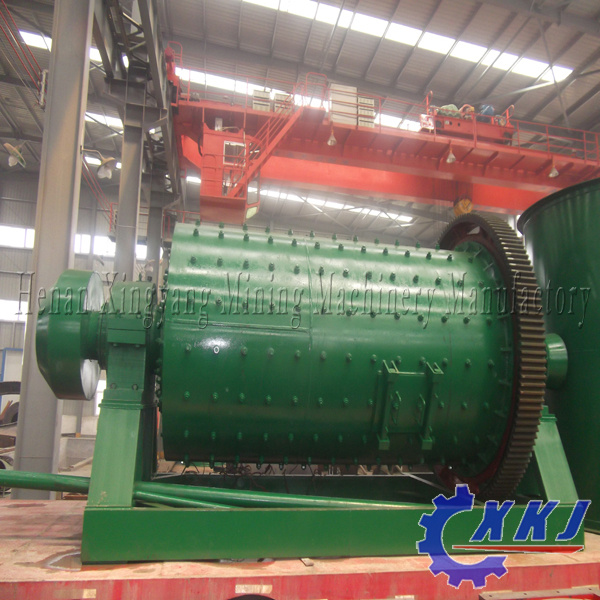

Ball mill is an efficient tool for grinding many materials into fine powder
Used to grind many kinds of mine and other materials
Widely used in building material, chemical industry, and more
There are two ways of grinding: The dry process and the wet process
It can be divided into tabular type and flowing type according to different forms of discharging material
Applications:
Key equipment for regrinding
Used for cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and more
Can grind ore or other materials that can be grinded either by wet process or by dry process
Working principle:
This ball mill is horizontal type and tubular running device, has two warehouses
This machine is grid type and its outside runs along gear
The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device
In this warehouse, there is a ladder scale board or ripple scale board, and different specification steel balls are installed on the scale board, when the barrel body rotates and then produces centrifugal force, at this time, the steel ball is carried to some height and falls to make the material grinding and striking
After grinding, coarsely in the first warehouse, the material then enters into the second warehouse for regrinding with the steel ball and scale board
In the end, the powder is discharged by output material board and the end products are completed
Ball mill features and benefits:
This machine is made up of feeding part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, generator, electrical control) and more, the hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear, the barrel body is wearable well and bears wearable scale board, this machine run steadily and works reliably
|
Model |
Shell rotation speed(r/min) |
Ball load(t) |
Feeding size(mm) |
Discharging size(mm) |
Capacity |
Motor power(KW) |
Weight(t) |
|
(t/h) |
|
Ø900*1800 |
36-38 |
1.5 |
<=20 |
0.075-0.89 |
0.65-2 |
18.5 |
4.6 |
|
Ø900*3000 |
36 |
2.7 |
<=20 |
0.075-0.89 |
1.1-3.5 |
22 |
5.6 |
|
Ø1200*2400 |
36 |
3 |
<=25 |
0.075-0.6 |
1.5-4.8 |
30 |
12 |
|
Ø1200*3000 |
36 |
3.5 |
<=25 |
0.074-0.4 |
1.6-5 |
37 |
12.8 |
|
Ø1200*4500 |
32.4 |
5 |
<=25 |
0.074-0.4 |
1.6-5.8 |
55 |
13.8 |
|
Ø1500*3000 |
29.7 |
7.5 |
<=25 |
0.074-0.4 |
2-5 |
75 |
15.6 |
|
Ø1500*4500 |
27 |
11 |
<=25 |
0.074-0.4 |
3-6 |
110 |
21 |
|
Ø1500*5700 |
28 |
12 |
<=25 |
0.074-0.4 |
3.5-6 |
130 |
24.7 |
|
Ø1830*3000 |
25.4 |
11 |
<=25 |
0.074-0.4 |
4-10 |
130 |
28 |
|
Ø1830*4500 |
25.4 |
15 |
<=25 |
0.074-0.4 |
4.5-12 |
155 |
32 |
|
Ø1830*6400 |
24.1 |
21 |
<=25 |
0.074-0.4 |
6.5-15 |
210 |
34 |
|
Ø1830*7000 |
24.1 |
23 |
<=25 |
0.074-0.4 |
7.5-17 |
245 |
36 |
|
Ø2100*3000 |
23.7 |
15 |
<=25 |
0.074-0.4 |
6.5-36 |
155 |
34 |
|
Ø2100*4500 |
23.7 |
24 |
<=25 |
0.074-0.4 |
8-43 |
245 |
42 |
|
Ø2100*7000 |
23.7 |
26 |
<=25 |
0.074-0.4 |
8-48 |
280 |
50 |
|
Ø2200*4500 |
21.5 |
27 |
<=25 |
0.074-0.4 |
9-45 |
280 |
48.5 |
|
Ø2200*6500 |
21.7 |
35 |
<=25 |
0.074-0.4 |
14-26 |
380 |
52.8 |
|
Ø2200*7000 |
21.7 |
35 |
<=25 |
0.074-0.4 |
15-28 |
380 |
54 |
|
Ø2200*7500 |
21.7 |
35 |
<=25 |
0.074-0.4 |
15-30 |
380 |
56 |
|
Ø2400*3000 |
21 |
23 |
<=25 |
0.074-0.4 |
7-50 |
245 |
54 |
|
Ø2400*4500 |
21 |
30 |
<=25 |
0.074-0.4 |
8.5-60 |
320 |
65 |
|
Ø2700*4000 |
20.7 |
40 |
<=25 |
0.074-0.4 |
12-80 |
400 |
94 |
|
Ø2700*4500 |
20.7 |
48 |
<=25 |
0.074-0.4 |
12-90 |
430 |
102 |
|
Ø3200*4500 |
18 |
65 |
<=25 |
0.074-0.4 |
----- |
800 |
137 |
