Small Ball Mill for Sale for Lab Experiment

Name: Small Ball Mill for Sale for Lab Experiment
Brand: china-castingforging.com
SKU: 687363762
Availability: InStock
Rating: 4.6 (149 reviews)

Price:	US $ 6800/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1set
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Henan Xingyang Mining Machinery Manufactory

Showroom Product Company Profile

Prod Model:	MQG/ MQY
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Q235, Cast Steel, Channel Steel, Cast Steel
Delivery:	in Time
Certificate:	Passed ISO9001:2008
Quality Control:	Go Through Five Checks Before Delivery
Warranty:	One Year Warranty Except Wearing Parts
Install,Debag And Training:	Free Installation Guidance and Lines Design
Operation:	Easy and Simple
Maintenance:	Few Time
After Sale Service:	Praised by Our Users
Manufacture Standard:	Accord with Industrial Standard
Type:	Ore Grinder

Product Description

Small Ball Mills Application:

Ball mill is the key equipment for grinding after the crush process, and it is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.

It also can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

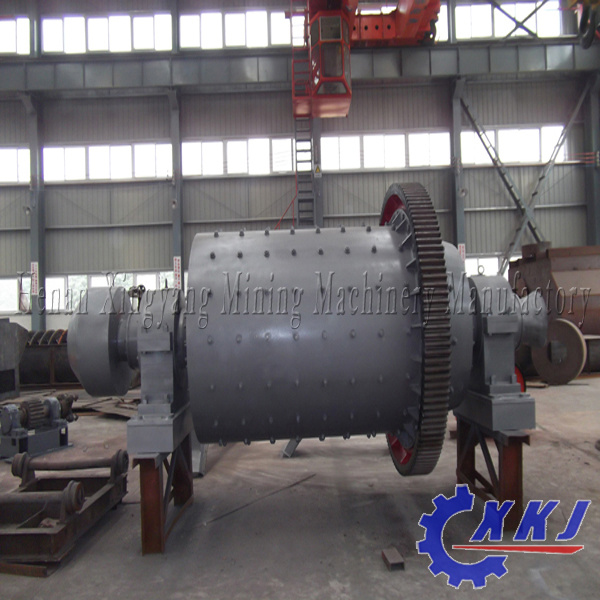

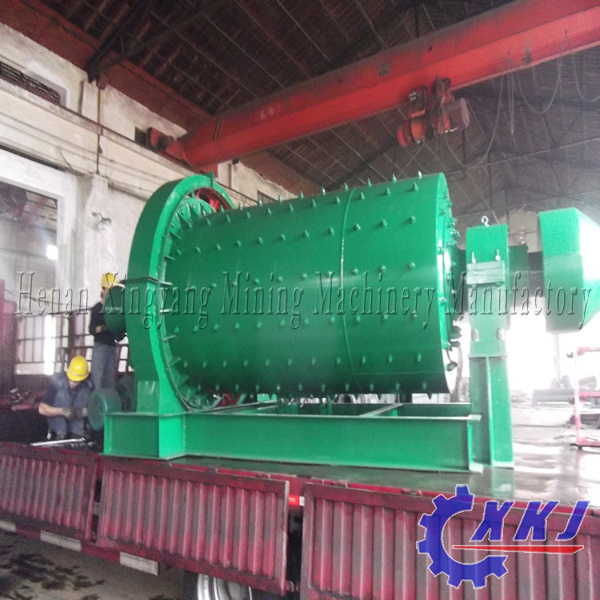

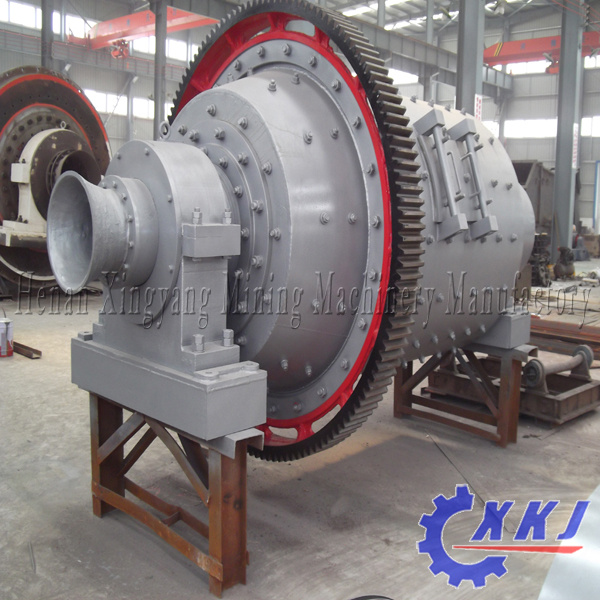

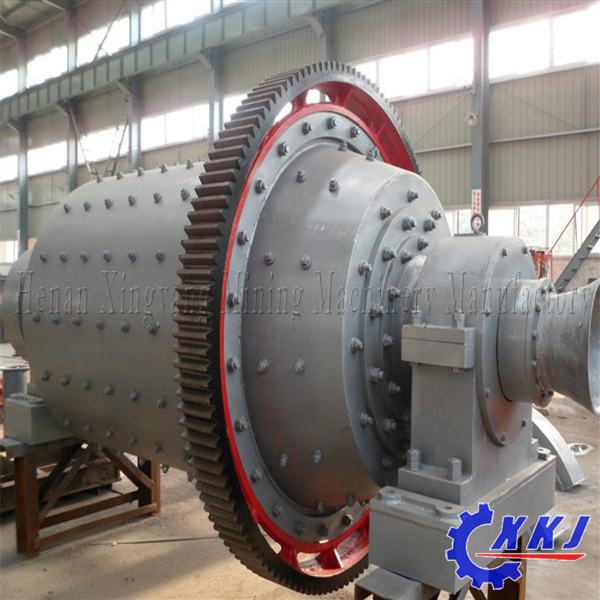

Structure of small Ball mills:
The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).

The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance.

Working Principle of small ball mills:

The ball mill is a horizontal rotating device transmitted by the outer gear.
The materials are transferred to the grinding chamber through the quill shaft uniformly.
There are ladder liner and ripple liner and different specifications of steel balls in the chamber.
The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials.
The ground materials are discharged through the discharging board thus the grinding process is finished.

Types:

a. dry and wet types.

b. lattice and overflow types, or center-discharge and side-discharge types

c. intermittent type and continuous grinding mill

d. edge and center types

Notes: other type of mill, like rod mill, ceramic ball mill is also supplied.

The reasons choose us as below:

1. Over 18 years' mature technology

2. Reliable quality and strict quality control

3. We put quality as first, stand in the perspective of the customer

4. Plenty of different capacity customers using case for you

5. Best sale and after sale servicevisit at home and abroad

6. Work hard and responsible work team

7. Win wins operation principle

Model	Shell rotation speed(r/min)	Ball load(t)	Feeding size(mm)	Discharging size(mm)	Capacity	Motor power(KW)	Weight(t)
Model	Shell rotation speed(r/min)	Ball load(t)	Feeding size(mm)	Discharging size(mm)	(t/h)	Motor power(KW)	Weight(t)
Ø900*1800	36-38	1.5	<=20	0.075-0.89	0.65-2	18.5	4.6
Ø900*3000	36	2.7	<=20	0.075-0.89	1.1-3.5	22	5.6
Ø1200*2400	36	3	<=25	0.075-0.6	1.5-4.8	30	12
Ø1200*3000	36	3.5	<=25	0.074-0.4	1.6-5	37	12.8
Ø1200*4500	32.4	5	<=25	0.074-0.4	1.6-5.8	55	13.8
Ø1500*3000	29.7	7.5	<=25	0.074-0.4	2-5	75	15.6
Ø1500*4500	27	11	<=25	0.074-0.4	3-6	110	21
Ø1500*5700	28	12	<=25	0.074-0.4	3.5-6	130	24.7
Ø1830*3000	25.4	11	<=25	0.074-0.4	4-10	130	28
Ø1830*4500	25.4	15	<=25	0.074-0.4	4.5-12	155	32
Ø1830*6400	24.1	21	<=25	0.074-0.4	6.5-15	210	34
Ø1830*7000	24.1	23	<=25	0.074-0.4	7.5-17	245	36
Ø2100*3000	23.7	15	<=25	0.074-0.4	6.5-36	155	34
Ø2100*4500	23.7	24	<=25	0.074-0.4	8-43	245	42
Ø2100*7000	23.7	26	<=25	0.074-0.4	8-48	280	50
Ø2200*4500	21.5	27	<=25	0.074-0.4	9-45	280	48.5
Ø2200*6500	21.7	35	<=25	0.074-0.4	14-26	380	52.8
Ø2200*7000	21.7	35	<=25	0.074-0.4	15-28	380	54
Ø2200*7500	21.7	35	<=25	0.074-0.4	15-30	380	56
Ø2400*3000	21	23	<=25	0.074-0.4	7-50	245	54
Ø2400*4500	21	30	<=25	0.074-0.4	8.5-60	320	65
Ø2700*4000	20.7	40	<=25	0.074-0.4	12-80	400	94
Ø2700*4500	20.7	48	<=25	0.074-0.4	12-90	430	102
Ø3200*4500	18	65	<=25	0.074-0.4	-----	800	137
