| Prod Model: |
J2118A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Die Locking Force: |
180tons |
Product Description
1. Brand: "YIN SHAN"
There are our brand as above photo logos on our machine bodies and operation panels.
2. Suitable for zinc alloy, Pb alloy parts die cast.
3. PLC control
4. Factory set up in 1981 in Ningbo city, China.
With "YIN SHAN" brand hot chamber die casting machines and cold chamber die casting machines. High casting quanlity with precise molds, furnaces and auxiliary machines.

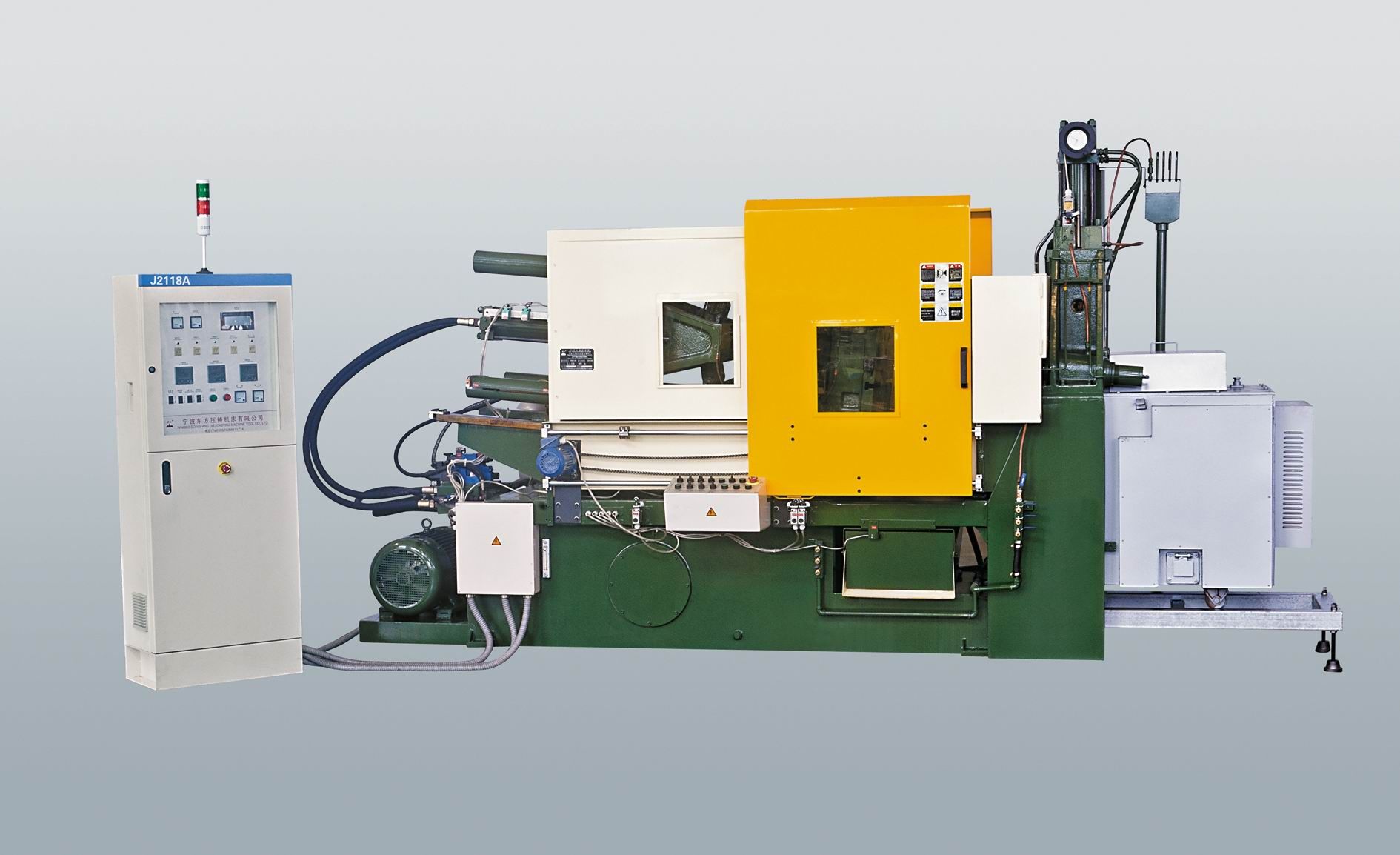

J2118 could process low melting point metal colored alloy of zinc and lead, which are widely used in automobile and motorcycle parts, instruments, household hardware and home appliances industry.
There are three kinds of driving modes as manual, single circulating and automatic circulating. The operator could manage several machines simultaneously under automatic mode.
This is an effective machine which could send up 3.5 Kg of zinc alloy per cycle.
J2118 is equipped with electronics and hydraulic pressed parts of high grade. The machine is controlled by program which is stable and reliable.
|
Project |
unit |
J2118 |
|
Die locking force |
KN |
1900 |
|
Stroke of moving platen |
mm |
350 |
|

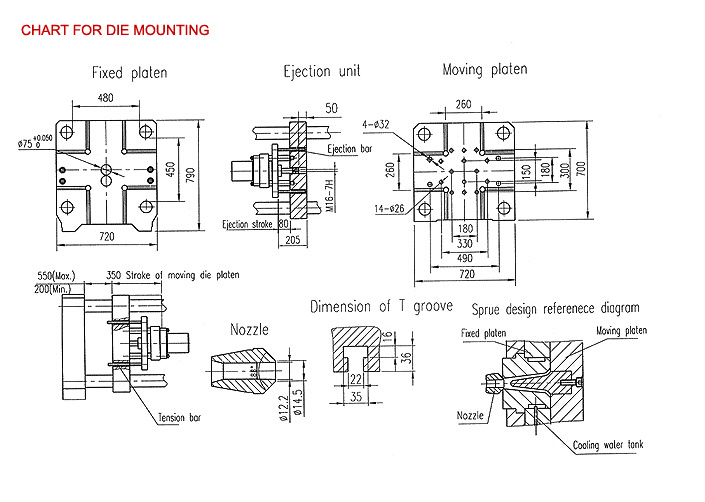

Inner space between the bars (H×V) |
mm |
480×450 |
|
Thickness of die block (Min.-Max) |
mm |
200-550 |
|
Injection force |
KN |
100 |
|
Injection stroke |
mm |
160 |
|
Injection position |
mm |
0,-80 |
|
Ejection force |
KN |
100 |
|
Ejection stroke |
mm |
80 |
|
Diameter of shot sleeve |
mm |
65,70(special order) |
|
Max Projecting area of casting |
cm 2 |
617 |
|
Working pressure of vane pump |
MPa |
12 |
|
Motor power |
KW |
11 |
|
Dosage of fluid metal per shot(Zinc) |
kg |
2.5(3.5) |
|
Effective volume of crucible (Zinc) |
kg |
450 |
|
Oil consumption of burner |
kg/h |
1.5-9.0 |
|
Volume of oil tank |
L |
500 |
|
Machine weight |
kg |
5800 |
|
Overall dimensions (L×W×H) |
mm |
4550×1660×2280 |
