| Prod Model: |
J1118K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Die Locking Force: |
180tons |
| Suitable For: |
Aluminum Alloy, Brass Alloy |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Warranty: |
12 Months |

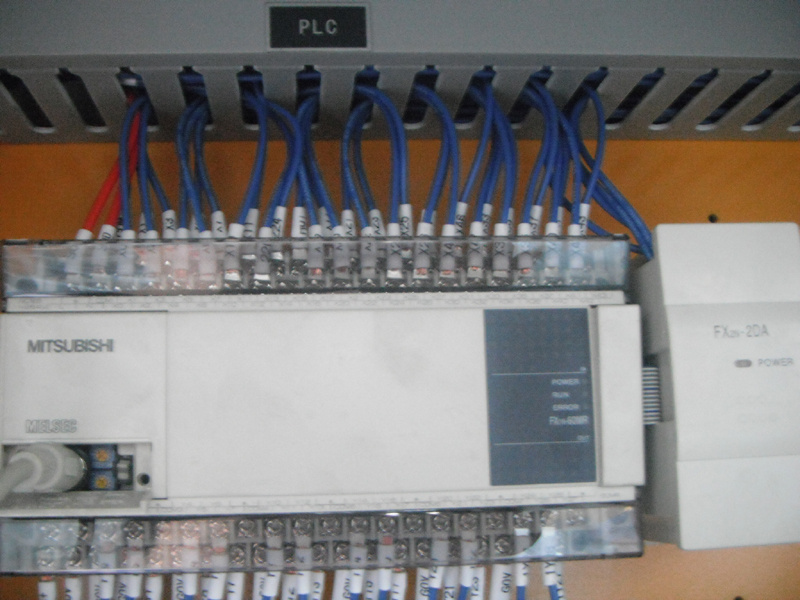

| PLC: |
Mitsubishi |
| Motor Voltage: |
380V, 220V, 415V etc. |
| Production Experience: |
Since1987 |

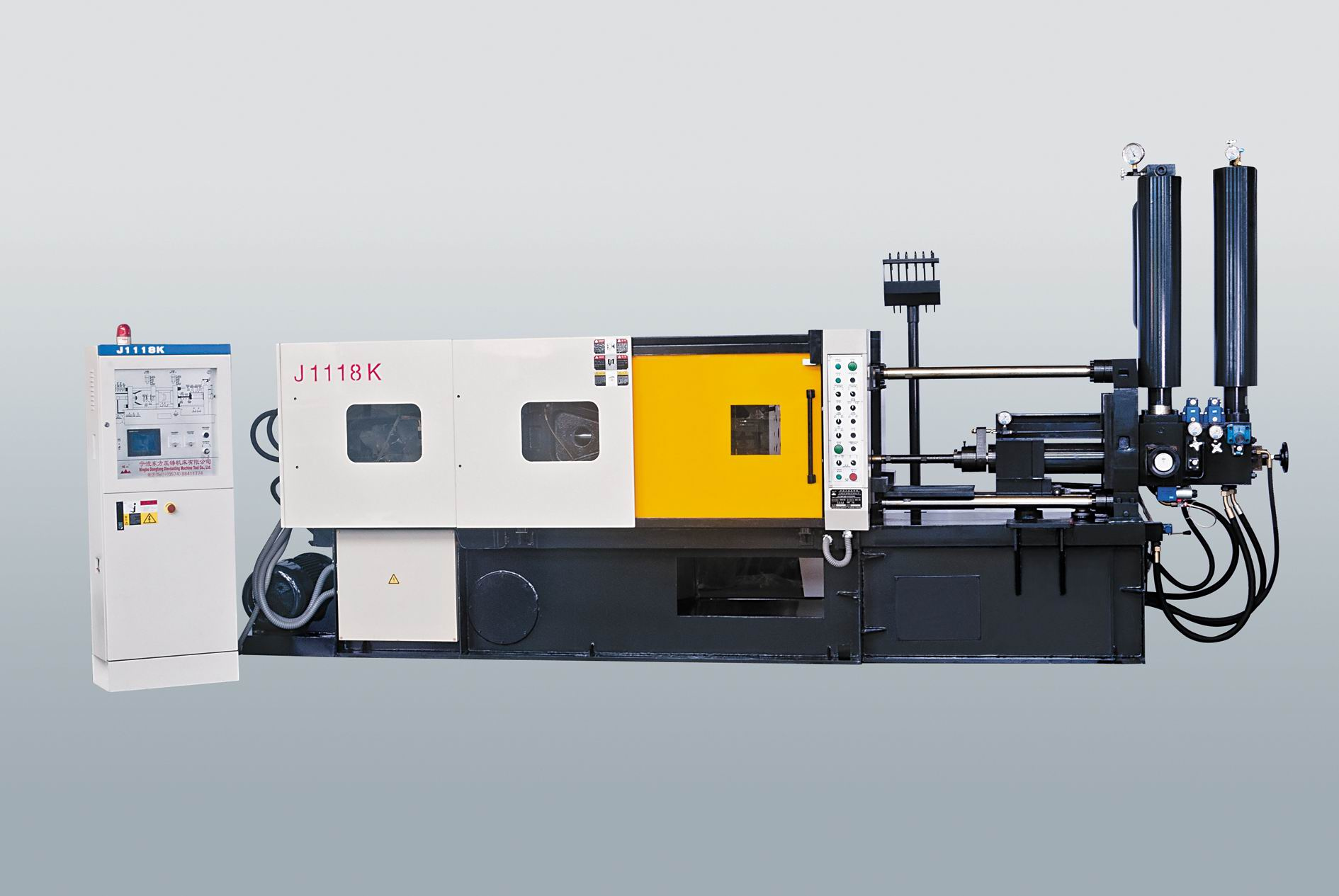

Product Description
First J1118K: made in 1981.
Suitable for Al, zinc alloy die casting in the auto parts, handles etc. fields.
Best price.
| Project | unit | J1118K |
| Die locking force | KN | 1800 |
| Size of moving platen (H×V) | mm | 720×719 |
| Inner space between the bars (H×V) | mm | 480×480 |
| Thickness of die block (Min.-Max) | mm | 200-580 |
| Stroke of moving platen | mm | 385 |
| Ejection stroke | mm | 85 |
| Ejection force | KN | 109 |
| Injection force | KN | 230 |
| Injection stroke | mm | 350 |
| Injection position | mm | 0,-70,-140 |
| Diameter of shot sleeve | mm | 50,60 |
| Dosage of fluid metal per shot (AL) | kg | 1.3,1.9 |
| Injection Pressure (Min-Max) | MPa | 117,81.3 |
| Max Projecting area of casting | cm 2 | 221 |
| Dry cycle | S | 7 |
| Pipe line pressure | Mpa | 13 |
| Motor power | kw | 15 |
| Machine weight | kg | 7000 |
| Overall dimensions (L×W×H) | mm | 5600×1280×2560 |
