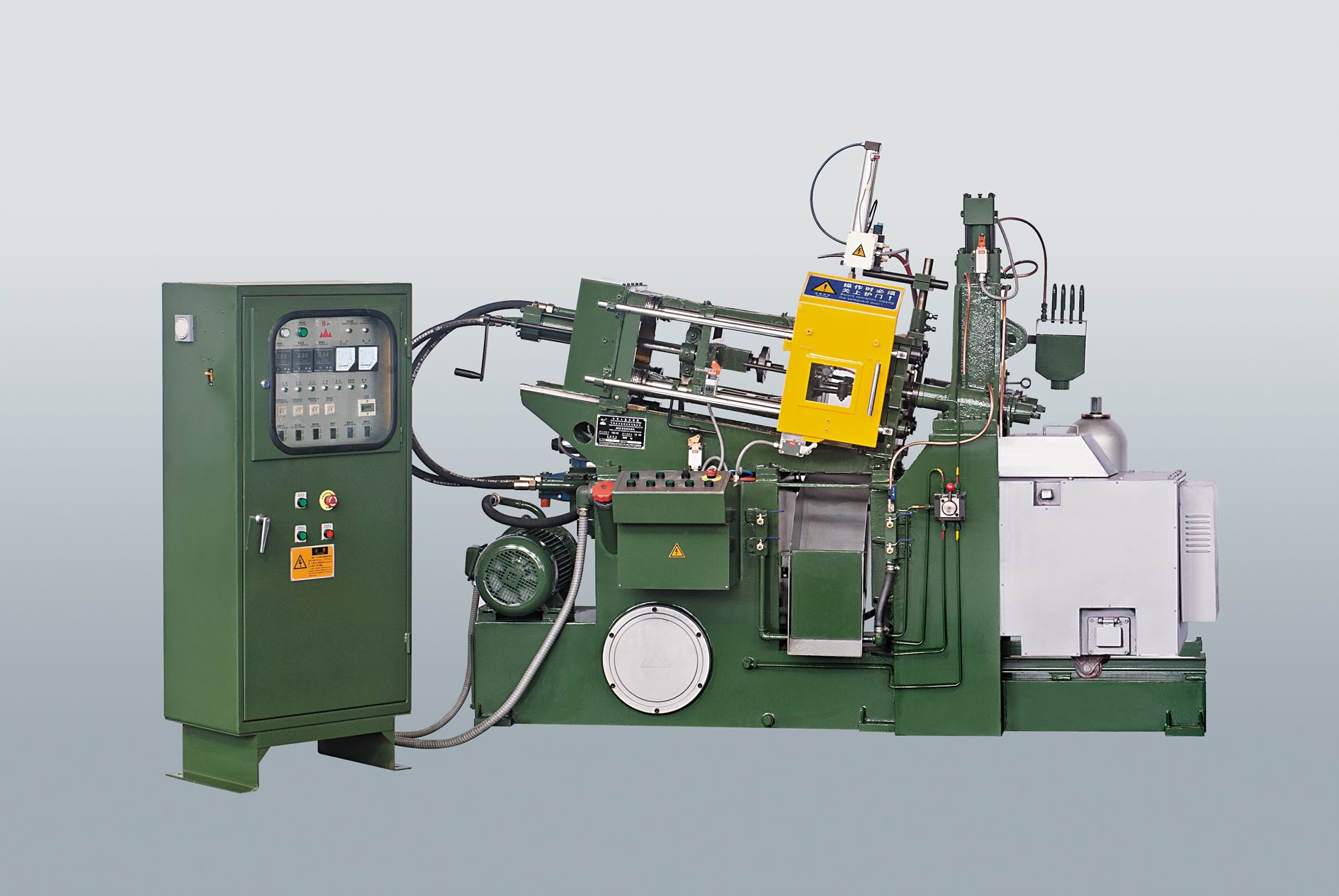

Zamak/Zinc Horizontal Hot Chamber Die Casting Machine
| Price: |
Negotiableset |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
J212, J213, J314, J215, J219, J2110, J2113, J2118 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Suitable For: |
Zinc, Zamak, Pb Alloy |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Warranty: |
12 Months |
| PLC: |
Mitsubishi |
| Motor Voltage: |
380V, 220V, 415V etc. |
| Production Experience: |
Since1987 |
Product Description
Introduction:
The hot chamber die casting machines are applicable to die casting of non-ferrous metals with low melting point such as zinc and Pb.
It is widely used in various industries including automobile and motorcycle parts, meters and instruments, daily-use hardware, and household appliances.
There are 16ton, 25ton/30ton, 380ton, 50ton, 58ton, 68ton, 66ton, 88ton/90ton, 110ton, 130ton, 190ton hot chamber die casting machines.
Technical Data Sheet:| The project | Unit | J2118 | J2113 | J2110 | J219A | J216E | J215A | J214 | J213E | J213B | J213D | J212 |
| Die locking force | kN | 1900 | 1300 | 1100 | 900 | 680 | 580 | 500 | 380 | 300 | 300 | 160 |
| Stroke of moving platen | mm | 350 | 350 | 270 | 270 | 240 | 210 | 210 | 210 | 200 | 200 | 125 |
| Inner space between the bars (H×V) | mm | 480×450 | 430×430 | 360×360 | 360×360 | 300×300 | 311×311 | 290×290 | 270×270 | 240×240 | 240×240 | 230×200 |
| Thickness of die block (min/max) | mm | 200/550 | 250/500 | 200/450 | 120/360 | 150/350 | 120/320 | 120/320 | 120/320 | 120/320 | 120/320 | 150/220 |
| Injection force | kN | 100 | 100 | 83 | 75 | 66 | 60 | 50 | 45 | 30 | 30 | 19 |
| Injection stroke | mm | 160 | 148 | 160 | 130 | 130 | 130 | 110 | 110 | 110 | 110 | 80 |
| Injection position | mm | 0,-80 | 0,-80 | 0,-60 | 0,-60 | 0,-60 | 0,-50 | 0,-40 | 0,-45 | 0,-40 | 0,-40 |
|
| Ejection force | kN | 100 | 90 | 85 | 60 | 55 | 50 | 50 | 45 | 35 | 35 |
|
| Ejection stroke | mm | 80 | 85 | 70 | 60 | 60 | 60 | 50 | 50 | 50 | 50 |
|
| Diameter of shot sleeve | mm | 65
70 | 60 | 60 | 60 | 50 | 50 | 50 | 50 | 45 | 45 | 38 |
| Max. projecting area of casting | cm2 | 617 | 395 | 340 | 236 | 202 | 189 | 159 | 134 | 132 | 132 | 80 |
| Working pressure of vane pump | MPa | 12 | 12 | 13.5 | 12 | 11.5 | 11.5 | 10.5 | 9 | 7 | 7 | 6.3 |
| Motor power | kW | 11 | 11 | 11 | 11 | 11 | 9.5 | 9.5 | 7.5 | 7.5 | 7.5 | 5.5 |
| Dosage of fluid metal per shot (zinc) | kg | 2.5(3.5) | 2.5 | 2.5 | 1.6 | 1.5 | 1.3 | 1.1 | 1.1 | 0.6 | 0.6 | 0.21 |
| Effective volume of crucible (zinc) | kg | 450 | 350 | 350 | 350 | 280 | 200 | 160 | 160 | 160 | 160 | 160 |
| Oil consumption of burner | kg/h | 1.5-9 | 1.5-7 | 1.5-7 | 1.5-6 | 1.5-6 | 1.5-6 | 1.5-6 | 1.5-6 | 1.5-6 | 1.5-6 | 1.5-6 |
| Volume of oil tank | L | 500 | 450 | 445 | 250 | 335 | 310 | 320 | 320 | 250 | 250 | 220 |
| Machine weight | kg | 5800 | 5500 | 5500 | 4700 | 4000 | 3500 | 3500 | 3300 | 2900 | 2800 | 2200 |
| Overall dimensions (L×W×H) | mm | 4550×1660×2280 | 5200×1600×2300 | 3940×1630×2563 | 4300×1800×2250 | 3732×1602×2563 | 3600×1500×2000 | 3500×1450×2100 | 3500×1450×2100 | 2900×1320×1880 | 3407×1273×2542 | 2790×1200×1935 |
Hybers Industrial Company is located in Ningbo City, Zhejiang Province of China. We have the import & export certificate with rich experience in international business which it already has become a comprehensive company integrating manufacture, innovation and trade industry.

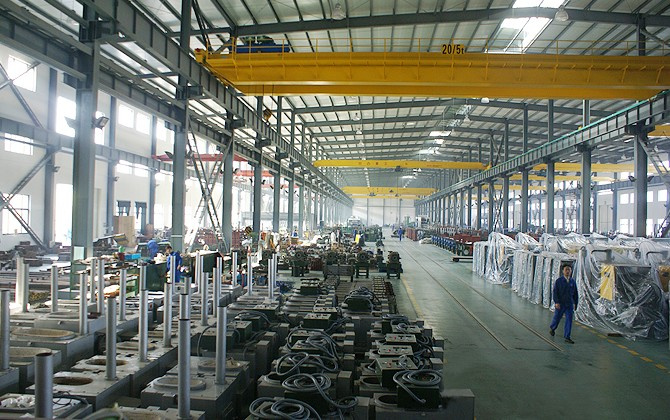

We are a professional manufacturer and seller of series of production equipment for Powder coating equipment, Waterproof pulverization equipment, our Chongqing DEGOLD machine company has got SGS plant certificate and CE certificate for CM mixer, PCS single screw extruder, ZM bead mill and FS high speed disperser in Feb. &Mar. 2010. Another, we are also in area of alloy Zinc & Aluminium Casting machine. Our clients spread all over the world. Owning foreign and domestic advanced processing equipment and perfect inspection instruments, all of our factories have twenty years' history with rich manufacturing experiences and the ISO9001 Quality Certification had already been got. In recent years, our long-term co-operation customers distribute in Australia, Tunisia, Belgium, South Africa, Chile, Peru, Pakistan, India, Turkey, Egypt, Malaysia, Vietnam, and Taiwan area etc.
To be professional, best-qualified and honest is our eternal service brief! With the first-class product quality, reasonable price and timely satisfying products, we are expecting to cooperate with you on the basis of multi-benefit
