| Prod Model: |
J219A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Die Locking Force: |
88tons |
| Trade Mark: |
Yin Shan |

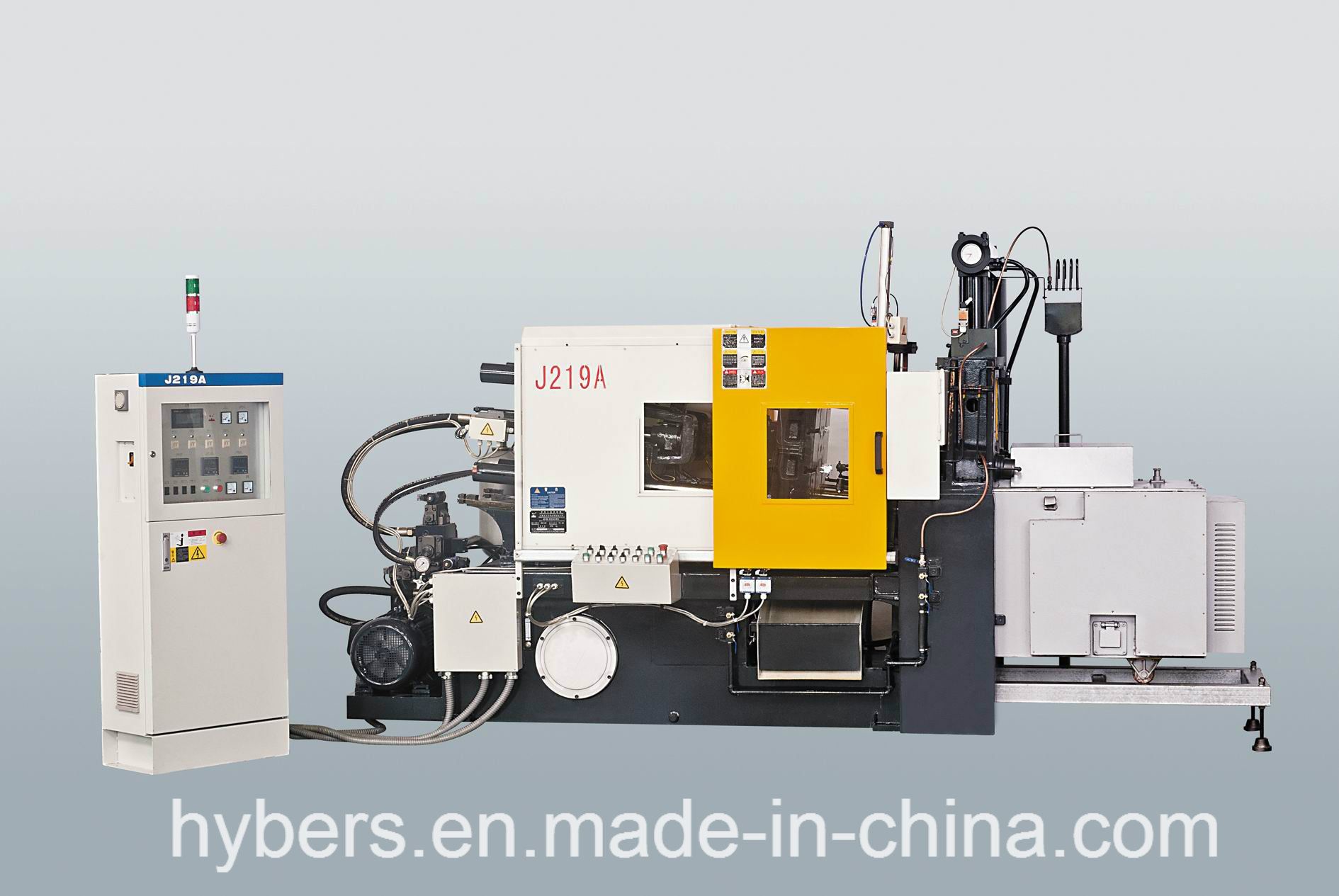

Product Description
1. Brand: "YIN SHAN"
There are our brand as above photo logos on our machine bodies and operation panels.
2. Suitable for zinc alloy, Pb alloy parts die cast.
3. PLC control
4. Factory set up in 1981 in Ningbo city, China.
With "YIN SHAN" brand hot chamber die casting machines and cold chamber die casting machines. High casting quanlity with precise molds, furnaces and auxiliary machines.
| Project | unit | J219A |
| Die locking force | KN | 900 |
| Stroke of moving platen | mm | 270 |
| Inner space between the bars (H×V) | mm | 360×360 |
| Thickness of die block (Min.-Max) | mm | 120-360 |
| Injection force | KN | 75 |
| Injection stroke | mm | 130 |
| Injection position | mm | 0,-60 |
| Ejection force | KN | 60 |
| Ejection stroke | mm | 60 |
| Diameter of shot sleeve | mm | 50 |
| Max Projecting area of casting | cm 2 | 236 |
| Working pressure of vane pump | MPa | 12 |
| Motor power | KW | 11 |
| Dosage of fluid metal per shot(Zinc) | kg | 1.6 |
| Effective volume of crucible (Zinc) | kg | 350 |
| Oil consumption of burner | kg/h | 1.5-6.0 |
| Volume of oil tank | L | 250 |
| Machine weight | kg | 4700 |
| Overall dimensions (L×W×H) | mm | 4300×1800×2250 |
