| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Q235, Cast Steel, Channel Steel, Cast Steel |
| Delivery: |
in Time |
| Certificate: |
Passed ISO9001:2008 |
| Quality Control: |
Go Through Five Checks Before Delivery |
| Warranty: |
One Year Warranty Except Wearing Parts |
| Install,Debag And Training: |
Free Installation Guidance and Lines Design |
| Operation: |
Easy and Simple |
| Maintenance: |
Few Time |
| After Sale Service: |
Praised by Our Users |
| Manufacture Standard: |
Accord with Industrial Standard |
| Motor Type: |
AC Motor |
| Condition: |
New |
| Type: |
Ore Grinder |
Product Description

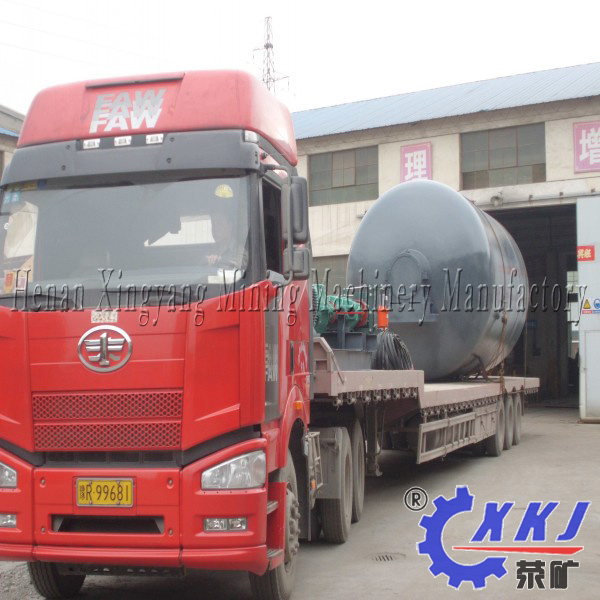

Ceramic ball mill:
This machine works in both dry and wet methods intermittently, to mill, mix and discharge materials such as feldspar, quartz and clay. The slurry can pass through 1000 sieve pore. It's a kind of super fine grinding mill, so the feed material should be in medium size to get best grinding efficiency and economic profit.
Ceramic ball mill working Principle:
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding processes finished.
Ceramic ball mill Structure:
The machine is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbling process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition.
|
Specification |
Cylinder size
(mm) |
Output size(mm) |
Weight of loading(t) |
Speed of bucket(r/min) |
Power(KW) |
Piece Weight(kg) |
|
0.2T |
Φ910×1120 |
0.075-0.89 |
0.2 |
35 |
2.2 |
1910 |
|
0.5T |
Φ1200×1420 |
0.075-0.4 |
0.5 |
31.45 |
4 |
2500 |
|
1T |
Φ1400×1800 |
0.075-0.4 |
1 |
27 |
7.5 |
3000 |
|
1.5T |
Φ1800×2100 |
0.075-0.4 |
1.5 |
23 |
11 |
4500 |
|
2.5T |
Φ2200×2200 |
0.075-0.4 |
2.5 |
20 |
18.5 |
6500 |
|
3T |
Φ2200×2600 |
0.075-0.4 |
3 |
20 |
22 |
7000 |
|
5T |
Φ2500×3000 |
0.047-0.4 |
5 |
16 |
37 |
13000 |
|
8T |
Φ2800×3400 |
0.047-0.4 |
8 |
13.8 |
45 |
19000 |
|
10T |
Φ2800×4000 |
0.047-0.4 |
10 |
13.8 |
55 |
20000 |
|
15T |
Φ3000×5000 |
0.047-0.4 |
15 |
13 |
75 |
28000 |
|
18T |
Φ3100×5000 |
0.047-0.4 |
18 |
12 |
90 |
28500 |
|
20T |
Φ3200×5800 |
0.047-0.4 |
20 |
13 |
90 |
29900 |
|
30T |
Φ3400×6500 |
0.047-0.4 |
30 |
14.2 |
110 |
32000 |
|
40T |
Φ3600×7000 |
0.047-0.4 |
40 |
13 |
132 |
36000 |
|
50T |
Φ3800×8000 |
0.047-0.4 |
50 |
11 |
200 |
45000 |
|
60T |
Φ4000×8500 |
0.047-0.4 |
60 |
.10 |
200 |
52000 |
Henan Xingyang Mining Machinery Manufactory used to be a state-own company. It has more than 30 years experience, who is located in the center of China Henan Zhengzhou, where occupied the important railway, highways, electric power, and postal communications and is the significant economical center in the new Eurasian Land Bridge. And at the same time, it has the advantage of central city of the central plain economic zone, developed science and technology, solid industrial foundation, policy superiority and perfect foundation facilities.
Henan Xingyang Mining Machinery Manufactory acts as the parent company and its branches, mineral processing heavy equipment, crushing and grinding equipment, agricultural machinery, Tibet company. Also we have office in Shanxi, Yunnan, Sichuan, Qinghai, Henan Nanyang City. Our products have export to Middle Asia, Middle East, South East Asia, South Africa, Europe, South America etc. We are stepping into mineral processing, metallurgy, chemical industry, electricity power and environment protecting. Xingyang Kuang People insist the operation principle Quality first, Service first, it enjoys a good reputation in home and abroad. Especially for the crushing equipment, Magnesium metal equipment, and mineral beneficiation plant.
