| Prod Model: |
JD-XZ1200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Size: |
2600*1500*1700mm |
| Machine Weight: |
1600kgs |
Product Description

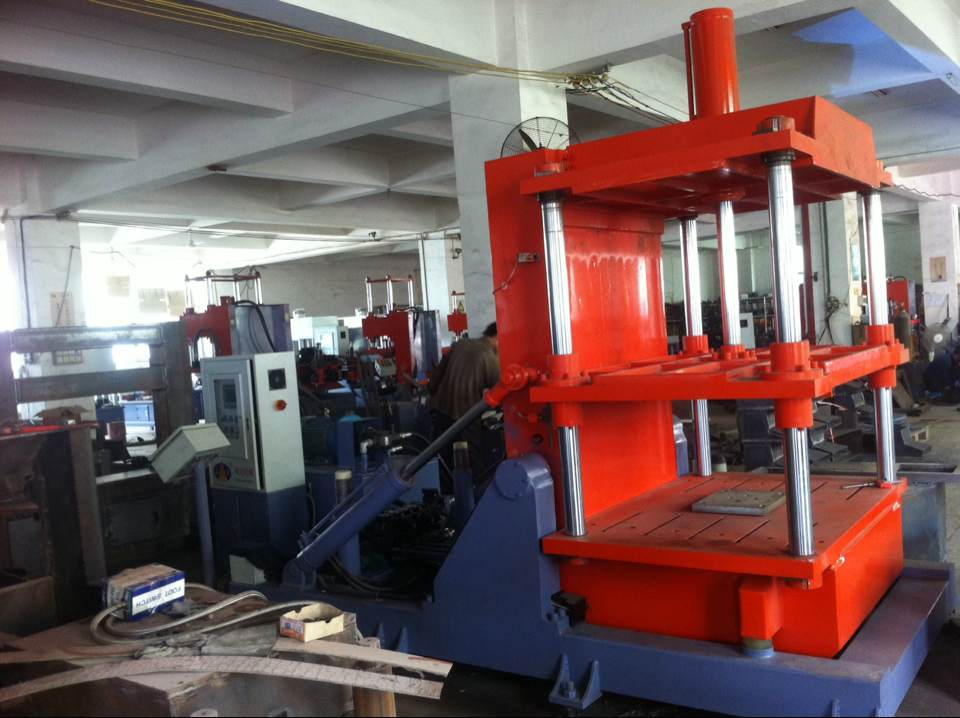

JD-1200 type tilting casting machines with programmable program controller PLC, limit switch control, hydraulic transmission. With a high degree of automation, mold force, smooth and reliable, large adjustment range of process parameters, simple operation, easy handling characteristics of the mold.
8.1 Host Technical Parameters
8.1. 2 The maximum size mold frame 1200x650x1650
8.1. 3 Maximum clamping force 150KN
8.1. 4 Maximum Opening Force 150KN
8.1. 5 The minimum height of closed 550
1.3.5 Dynamic Templates stroke 1150
8.1. 6 Top -core cylinder output 100KN
8.1. 7 Table tilting angle 0 ° -90 °
1.3.8 Table tilting speed of 8 ° / S ≤ V ≤ 4 ° / S
8.1. 8 Rated Power hydraulic station 11KW
8.1. 9 Hydraulic system pressure rating 6.5Mpa
8.1. 10 Hydraulic system working pressure 5.5-10Mpa
8.1. 11 control manual and automatic
Jingda Machinery" is the brand of Quanzhou Jinglong Machinery Company. We are a complete sets of sanitary plumbing equipments manufacture specially in technical process guidance, mold designing, on-site staff training services.
Main products: Gravity Casting Machine, Double Automatic Core Shooting Machine, Vertical Core Shooting Machine, Sand Mixing Machine, Biaxial Composite Machine, Low Pressure Casting Machine, Zinc Alloy Casting Machine, Pneumatic Clamps, Surface Lapping Machine etc.
We offer free professional technician training service to help technicians in well mastering the equipment operation and achieving the expectation.
We always abode by its principle of "the quality of survival, technology for development". Through constantly creating, hard-working and innovation to create superior products, improve company's strength and perfect the market system. We are dedicated to provide customers with comprehensive after-sales services. We will hold hand by hand with all customers home and abroad to create more achievements with our best sincerity.
