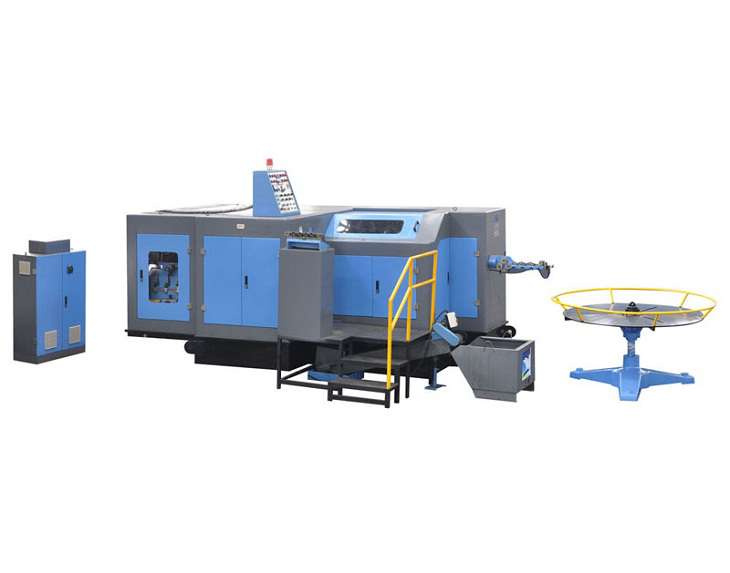

DBP-105s M10 Multi-Station Bolts Cold Upsetting Former

Name: DBP-105s M10 Multi-Station Bolts Cold Upsetting Former
Brand: china-castingforging.com
SKU: 675505071
Availability: InStock
Rating: 4.7 (77 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

HARBIN RAINBOW TECHNOLOGY CO., LTD.

Showroom Product Company Profile

Prod Model:	DBP-105S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Forging Forming Method:	Mold Forging

Product Description

This machine is fully automatic and high-speed forming equipment. Suit for bellow products.
1. DIN. AISI. GB. Standard fasteners
2. Non-standard fasteners and massive produced metal parts for automotive electronic and steel structure etc.

Forging force 90, 000 KGS
Max cutting diameter 12 MM
Max cutting length 135 MM
Production speed 85-130 PCS/MIN
Max. P. K. O. Length 35 MM
Kick-Out length 118 MM
Main RAM stroke 190MM
Main motor power 30 KW
Cut-off-die overall size 45*59L MM
Punch die overall size 53*115L MM
Main die overall size 75*135L MM
Mould pitch 90 MM
Machine weight 20, 000 KGS
Producible bolt diameter 6-10 MM
Producible shank length of bolt 15-110 MM

Application Scope

Automatic multi-station Cold Bolt Former is a specialized machine tool with high efficiency and automation among forging machinery. Cold forging technique and automatic cold forging formers are used as an important means for producing different kinds of bolts, screws, rivets and nuts in the field of fastener industry. Because of the advantage of the cold forging equipment itself and the superiority of cold forging technique, the formers also are widely used in different national economic territories for producing fasteners and abnormal non-standard parts such as aviation steamer, machinery, rail traffic, vehicle, motorcycle, bicycle, sewing machine, construction, furniture, light industry and daily necessities, etc.

Cold Bolt former Inner Structure Diagram

Wire cutting part is actuated by strong link-block system,the movement is stable and reliable,as well as by using circular shears for assuring the kerf clear and neat.

There are two devices for beyond retreat in the feeding course and the pawl can raise automatically when the pawl goes back.

The swing of gripper is driven by conjugate cam,so the movement is reliable even at high speed return.
Thanks to swing type pneumatic gripping mechanism,the gripping capacity is adjustable.if the wire is in short size,the first gripper will automatically free clamping.

If the wire is in short size,the first gripper will automatically free clamping,stop machine and raise the alarm.

Hand operated digital feeding length

The ON/OFF between main drive shaft and flywheel can be actuated at once,due to air clutch,it is able to let the former run at inching mode,but the motor will not stop instantly or start suddenly for protecting motor and converter.
Each station of rear knock out device can be adjusted individually,and the last station can realize the action of knocking out trimmed product via adjusting the location of cam or changing different cam,however the safety pin with the function of pressure check-up is attached.

Due to high accurate multi-function compound gripping mechanism,the gripper can be interchanged at will between translational wide open and turnover wide open,the break through key of the know how is both turnover and open(this mechanism has gotten patent protection).

With hgih-grade configuration,easy for adjustment and centralized compressde-air system.

Simple and convenient operating system

High accuracy main sliding block is designed to be connected with rear wing for letting it run stably and precisely,the bottom of front and back wing is adopted super wearing inserted copper plate with self lubrication,it can ensure accuracy and extend service life.

With individual and independent design for front knock out,each front knock out station can be separately adjusted and to be equipped with knock out force checking system,if the knock out force is too big,it will automatically stop machine and raise the alarm.

Model	Unit	DBF-85S	DBF-105S	DBF-135L	DBF-165S	DBF-205L	DBF-255L	DBF-305L
Forging Station	NO.	5	5	5	5	5	5	5
Forging force	Kgs	80.000	90.000	130.000	220.000	350.000	440.000	550.000
Max.cut-off dia.	mm	φ10	φ12	φ16	φ23	φ23	φ30	φ36
Max.cut-off length	mm	115	135	190	190	240	253	420
Output rate	pcs/min	90-145	85-130	60-100	55-95	45-75	35-55	25-45
P. K. O. stroke	mm	25	35	45	45	46	40	60
K.O stroke	mm	92	118	175	178	220	205	380
Main ram stroke	mm	160	190	270	274	346	330	580
Main motor power	Kw	22	30	37	55	75	110	132
Overall dims. Of cut off die	mm	φ50*50L	φ45*59L	φ63*69L	φ64*100L	φ75*120L	φ80*130L	φ118*150L
Overall dims. Of punch die	mm	φ45*125L	φ53*115L	φ60*130L	φ75*185L	φ90*215L	φ120*170L	φ140*300L
Overall dims. Of main die	mm	φ60*130L	φ75*135L	φ86*190L	φ108*200L	φ125*240L	φ140*250L	φ168*420L
Die pitch	mm	80	90	110	129	140	160	180
Approx. weight	T	17	20	31	52	75	115	200
Applicable bolt size	mm	5-8	8-10	8-12.7	10-16	12-20	14-27	24-30
Shank length of blank	mm	15-90	15-110	20-160	20-160	25-200	35-1800	100-350
